Ex d approved Smart IoT Gateway - Ex d iConnector
SKU#
STHC-X
STHC-X is a Smart IoT Gateway, aka iConnector, with Ex d approved by ATEX, a main component in any IoT application. iConnector has a role to connect the real World's things like sensors, meters, machines... to server system for data logging, data analytics, monitoring & controls... iConnector support multiple Industrial Fieldbus like Modbus, EthernetIP, Profinet, CClink, Wireless sensor network... It connects to server system via LAN/ WAN as Ethernet, WiFi or Cellular. STHC-X can be installed in Zone 1 or Zone 2.
For Applications
Condition Based Monitoring, Energy Monitoring, Facility Monitoring, Fuel Monitoring, Gas Leakage Detection, Machine Health Monitoring, Production Monitoring, Temperature Monitoring, Vibration Monitoring, Warehouse Monitoring, Water Meter Reading
3-in-1 Device
iConnector is a 3-in1 device, comprises Data logger + Logic Controller + Internet Gateway
Just 2-step for using
Just install and configure it remotely on Globiots, then you can start use it!
NO need Programming
Don't need to learn any Programming language, just configure it remotely by Globiots platform
Multiple Fieldbus Protocols
Support multiple Fieldbus protocols like Modbus, EthernetIP, Profinet, CCink…

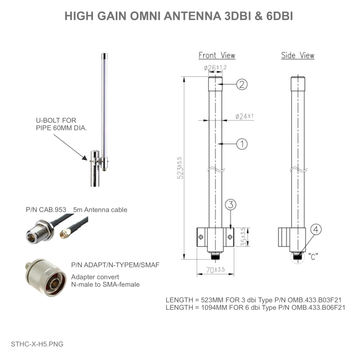

| Host Communication Cellular type | GPRS Quadband (850/900/1800/1900)/3G-Dual band (2100/900)/3G- Penta Band (2100/1900/850/850Japan/900/800Japan), external antenna |
| Host Communication Etherner type | 01 x RJ45 port, 10Mbps |
| Host Communication WiFi type | 802.11b/g/n, 2.4Ghz, external antenna |
| Host communication supports | TCP/IP, UDP/IP, FTP, HTTPS, SNMP, MQTT... |
| Fieldbus communcation | ModbusRTU x 01 port, 31 slaves, max 19.2 kpbs |
| Wireless connections | Optional built-in wireless bridge or wireless co-ordinator |
| Vietnam Type Approval Cerification | QCVN 54:2011/BTTTT, QCVN 15:2015/BTTTT (DAVITEQ B00122019) |
| ATEX Certification | IMQ 14 ATEX 005 X and TÜV CY 18 ATEX 0206158 X |
| Marking | ATEX II 2G Ex db IIC T5/T6 Gb and ATEX II 2D Ex tb IIIC T100/T85℃ Db |
| Directive | ATEX 2014/34/EU |
| Standards | IEC-EN60079-0 IEC-EN60079-1 IEC-EN60079-31 |
| Applicable Zones | Zone 1 - 21 (gas) and Zone 2 - 22 (dust) |

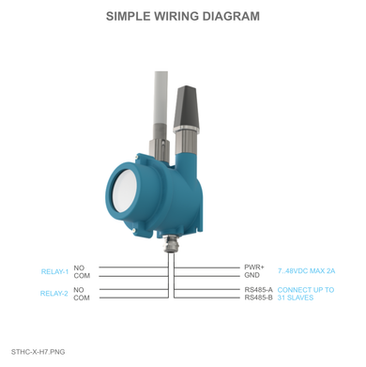

| Power supply | 7..48VDC, avg 200mA, peak 2.0A with back-up Lithium Super Capacitor |
| On-board logginry | 2MB Flash |
| Electrical connection | 01xM25 conduit (cable gland is not included) |
| SIM slot | 01 x micro-SIM (cellular versions only) |
| Relay outputs | 02 x relay SPST NO contact, 125VAC@0.3A or 24VDC@1A |
| Mounting method | Wall mount |
| Operating ambient Temperature | -40~85℃ |
| Housing/ Protection | Cast Aluminum with powder coating and glass windows, IP66 |
| Dimension/ Net weight | H120xW120xD120 (not included antenna)/ 1.7 kgs |
Dimension
