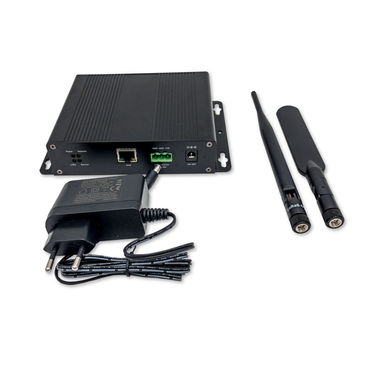

LoRaWAN Indoor Gateway
SKU#
GWIND
GWIND is a LoRaWAN® Gateway designed for indoor installation, used in projects such as Smart Factory, Smart Agriculture, Smart Building, Smart Residential Area, Smart City... It simultaneously supports 8 connection channels to help receive a large number of packets from surrounding LoRaWAN sensors. The connection distance to the LoRaWAN sensors is up to 10km (depending on the environment and sensor types). It supports common communications such as Ethernet, LTE, WiFi. LoRa frequency support 863∼870MHz/ 902∼928MHz.
This LoRaWAN Gateway is widely used in applications such as reading water meters, electricity meters, gas meters, environmental monitoring, smart farms, and smart factories...
For Applications
Automatic Ventilation System, Condition Based Monitoring, Energy Monitoring, Facility Monitoring, Fuel Monitoring, Gas Leakage Detection, Indoor Air Quality Monitor, Machine Health Monitoring, Odor Monitoring, People Counting, Production Monitoring, Temperature Monitoring, Vibration Monitoring, Warehouse Monitoring, Water Meter Reading
Connect to any LoRaWAN sensors
Compliance to LoRaWAN 1.0.3
Support all Network Server Software
Support Packet Forward/ Basic Station Mode. Support Spectral Scan & Listen Before Talk (LBT)
Various Internet connections
POE Ethernet as standard, Optional Wifi, LTE Cat 4, NB-IoT, LTE Cat M1
POE Feature
Easy powering the device via POE Ethernet cable
| LoRaWAN Specification | LoRaWAN 1.0.3 |
| Frequency Band | Select 863∼870MHz/ 902∼928MHz |
| Number of Channels | Up to 8 concurrent channels for LoRa transmission |
| LoRa Transmit Power | 0.5W (up to 27 dBm) |
| LoRa Receive Sensitivity | Down to -142 dBm (conducted) |
| LoRa Software | Standard and LRR Actility |
| COMMUNICATION | |
| Standard Interfaces | 1 WAN RJ45 10/ 100Mbps (w/ passive PoE capability), 1 SIM card slot (2FF), 1 DC jack in/ 1 terminal block |
| Optional Wi-Fi | 802.11b/g/n, 1x1, 2.4GHz |
| Optional 4G LTE | LTE Cat 4 or Cat M1/NB2 |
| Antenna Type | 1 x external LoRa antenna, and option antennas are 1 x External antenna for LTE, 1 x external Wi-Fi antenna |
| Operating Temperature | -10∼55℃ |
| Storage Temperature | -20∼60℃ |
| Power Supply | DC 12 V/1.5 A-Power Adaptor/ DC 10∼30V 3-Pin Connector Power supply/ Passive PoE 10∼30V |
| Housing | Profile Aluminum, IP20 |
| Dimensions | L:122 x W:135 x H:36mm |
| Weight | ≤ 450g |

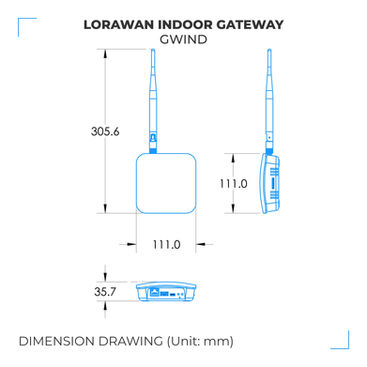

Dimension
1/0
