Smart Battery Pack for Outdoor Installation
SKU#
SBP

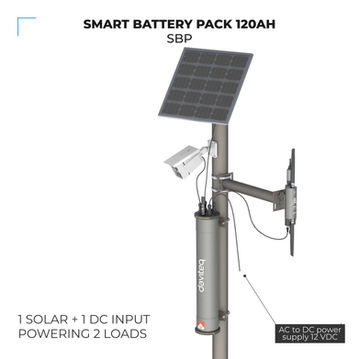

The Smart Battery Pack (BP) is a compact, weather-resistant energy storage solution designed for outdoor use, IP67-rated and capable of withstanding wind speeds up to 200 km/h. It utilizes advanced LiFePO4 cells, known for their superior safety, long cycle life, stable performance, and excellent thermal stability—making them ideal for high-reliability energy systems. The BP supports dual power inputs—18V solar panels and DC supply—ensuring consistent operation in remote or off-grid locations. Multiple units can be daisy-chained for higher capacity, and its ultra-low standby leakage current allows for efficient long-term storage. Equipped with LoRaWAN, Sigfox, or NB-IoT connectivity, it enables real-time remote monitoring via any IoT platform. Its streamlined, pole-mounted design minimizes visual impact, making it suitable for urban or rural deployment on utility poles or light posts, especially where grid power is unavailable.
For Applications
Powering LoRaWAN gateway, IoT gateway, Camera
Dual Power Input & Scalable Design
Supports simultaneous input from solar panels and DC power supply, with daisy-chain capability for expanded capacity in high-demand applications.
LiFePO₄ Battery Technology
Utilizes high-performance LiFePO₄ cells offering enhanced safety, long cycle life, thermal stability, and wide temperature range (-20°C to 60°C discharge).
Rugged & Weatherproof for Harsh Environments
Engineered to withstand wind speeds up to 200 km/h and operate reliably outdoors in remote or gridless locations.
Seamless IoT Integration

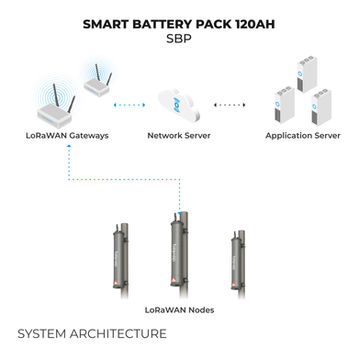

Built-in connectivity options including LoRaWAN, Sigfox, or NB-IoT for real-time remote monitoring and management via any IoT platform.
| Capacity | 120AH x 12.8V (1536WH), 20AH x 12.8V (256WH). Connect multiple units to increase capacity. |
| Battery cells | High quality LiFePO4 cells |
| Power Inputs | 2 independent inputs, 16-25V, max 150W in total |
| Max charging current | 10A |
| Charging efficiency | 96% |
| Charging temperature | 0 .. + 45 oC |
| Discharging temperature | -20 .. + 60 oC |
| Power Input connectors | 2 x M19 Male, 3-pin, allow daisy chain connection, come with 1m cable 12AWG and 1 pair of MC4 connector for Solar Panel connection |
| Battery cell balancing | Yes, passive type |
| Protection | over temperature, over voltage, under voltage, over load, over charging, over discharging... |
| Output | 12 – 12.8V, max 20A each connector M19 |
| Output connectors | 2 x M19 Female , 3-pin, max 20A each, Allow daisy chain |
| Remote Monitoring | by LoRaWAN with internal antenna, or Sigfox, NBIoT. |
| Housing | Anodized Aluminum IP67 |
| Ingress Protection | IP67 |
| Dimension | 150mm x 700mm for 120AH version, 150 x 250 mm for 20AH version |
| Net weight | 20 kgs for 120AH version, 8 kgs for 20AH version |
Dimension
