WIRELESS SENSORS

Ambient Temperature Sensor Module

SKU#
ATE
Replaced by
Replaced SKU
Ambient Temperature Sensor Module ATE utilizes digital temperature sensor delivers high accuracy measurement in range -20∼60℃. Easy connect to WS433-M12(-T) via M12 connector.

For Applications

Automatic Ventilation System, Facility Monitoring, Indoor Air Quality Monitor, Warehouse Monitoring, Temperature Monitoring

Plug & Play

Just plug the pressure module onto WS433-M12F via M12 connector, then it works automatically

High accuracy

Digital sensor with factory-calibration

Multiple types

Compact type or cable extionsion type to suite variety applications

IP67 Weather-proof

IP67 sensor probe allows immersion into ice-water for quick validation

​

SensorDigital type, factory calibrated, IP67, immersible to ice-water for quick validation
Measuring range-20∼85℃
Accuracy±0.5℃
Resolution0.125℃
MaterialPA plastic
Electrical connectionM12-male connector

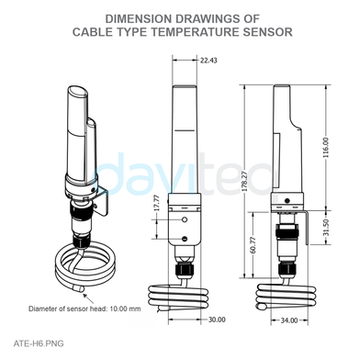

Dimension

Application Notes

Only available for Logged-in members.​​​​
Please Log in or Register to access this information.
