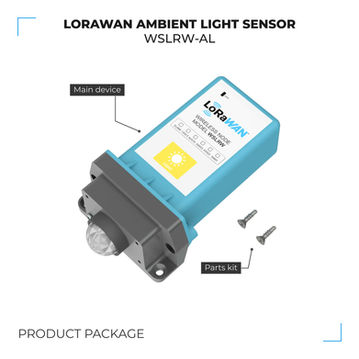

LoRaWAN Ambient Light Sensor
SKU#
WSLRW-AL
Replaced by
Replaced SKU
WSLRW-AL is a LoRaWAN ambient light sensor with built-in the ultra low power light sensor that measures the intensity of visible light. The spectral response of the sensor tightly matches the photopic response of the human eye and includes significant infrared rejection. The precision spectral response and strong IR rejection of the device enables the AL sensor to accurately meter the intensity of light as seen by the human eye regardless of light source. Measurements can be made from 0.01 lux up to 83k lux without manually selecting full-scale ranges by using the built-in, full-scale setting feature. This capability allows light measurement over a 23-bit effective dynamic range. Ultra-low-power design and smart firmware allow the sensor to run on a 2 x AA battery 1.5V for 10 years with one update per day. It can support all frequency regions in over the World. The sensor will transmit data in kilo-meters distance to the LoRaWAN gateway, any brand on the market.
For Applications
Facility Monitoring, Safety Monitoring
LoRaWAN communication
LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market.
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 02 x Type AA batteries.
Visible light measurement
Precision Optical Filtering to Match Human Eye, Rejects > 99% (typ) of IR
IP68
For both indoor and outdoor applications
| Sensor technology | Light sensor with Precision Optical Filtering to Match Human Eye, Rejects > 99% (typ) of IR |
| Measurements range | 0.01 lux to 83 k lux 23-Bit Effective resolution |
| Linearity | 2% of Reading value for > 40 Lux, 5% of Reading value when the light is less than 40 lux |
| Temperature drift | 0.01%/℃ when light intensity is about 2000 lux |
| Operating Temperature Range | –40∼85℃ |
| COMMUNICATION | |
| SF Factors | SF7∼SF12 |
| Antenna | Internal Antenna 2 dbi |
| Power Supply | Primary batteries 02 x AA size 1.5VDC (battery not included) |
| RF Frequency and Power | 860∼930MHz, 14∼20 dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN Class A V1.0.3 |
| Data sending modes | interval time, alarm and manually triggering by magnetic key |
| RF Module complies to | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Working temperature | -40∼60℃ (with AA L91 Energizer®) |
| Dimensions | H106xW73xD42 |
| Net-weight | 190g |
| Housing | Aluminum + Polycarbonate plastic, IP68 |
Dimension
WSLRW-AL- Daviteq LoRaWAN Ambient Light Sensor - H6.jpg
WSLRW-AL- Daviteq LoRaWAN Ambient Light Sensor - H6.jpg
