LoRaWAN Current Input Node
SKU#
WSLRW-MA
Replaced by
Replaced SKU
WSLRW-MA is the LoRaWAN wireless node with one channel to measure 0-20mA DC current from Process instruments like Pressure transmitter, Temperature transmitter, Level transmitter, Flow meters, Analyzers... at very low voltage drop. With Ultra-low-power design and smart firmware allow the sensor can last up to 10 years with 2 x AA batteries (depends on configuration). The sensor will transmit data in the kilo-meters distance to LoRaWAN gateway, any brand on the market.
Applications
Process Monitoring, Safety Monitoring
LoRaWAN communication
LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market.
Pre-calibrated
Sensors are pre-calibrated at factory to deliver high accuracy and quick installation
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with a 2 x AA Type battery.
IP67/IP68
For both indoor and outdoor applications
| Measuring range | 0∼20mA |
| Accuracy | 0.05% of span |
| Resolution | 1/3000 |
| Permissible input current | Max 60 mA |
| Permissible voltage | Max 2.5V (between AI+ and AI-) |
| Power supply output | 15VDC max (Configurable via offline tool) |
| Temperature drift | < 50ppm |
| Sensor port connector | M12-Male, 4-pin A-coding (IP67 version) or 2m cable (IP68 version) |
| COMMUNICATION | |
| SF Factors | SF7∼SF12 |
| Antenna | Internal Antenna 2.0 dbi |
| Battery | 02 x AA size 1.5VDC (battery not included) |
| RF Frequency and Power | 860∼930MHz, 14∼20dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN, class A |
| Configuration | via Downlink or Offline tool (free software) |
| Data sending modes | Interval time and when alarm occurred |
| Certification | CE mark, FCC |
| Working temperature | -40∼60℃ (with AA L91 Energizer®) |
| Dimensions | H180xW50xD40 |
| Net-weight | 250g |
| Housing | Polycarbonate & POM plastic, IP67/IP68 |

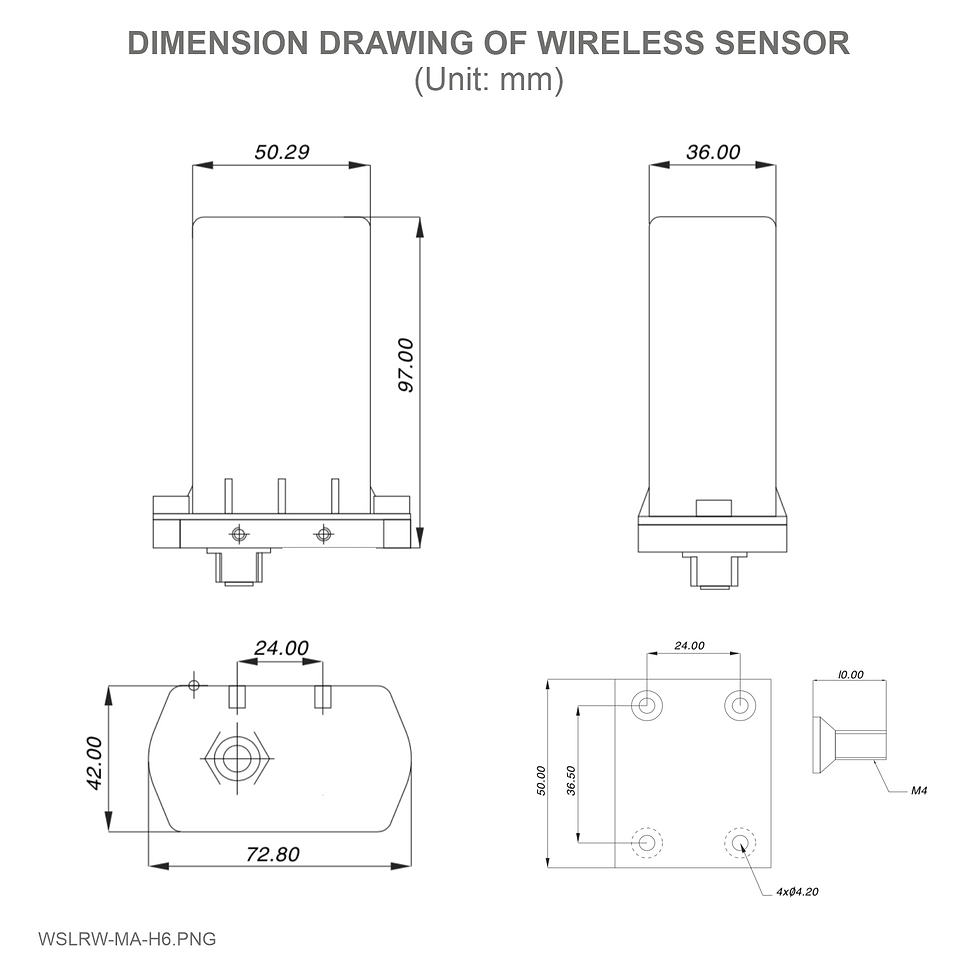

Dimension
