LoRaWAN Ex d RS485 Master Node
Out of gallery
SKU#
WSLRWEX-RS485
Replaced by
Replaced SKU

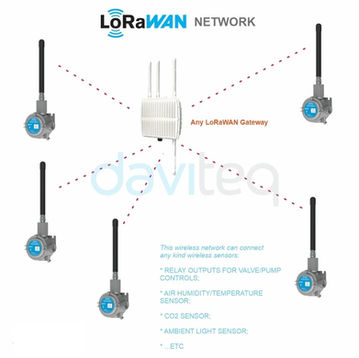

WSLRWEX-RS485 is an Exd LoRaWAN node with an RS485 master port to connect to any sensor, water meter, power meter, gas meter, or flow computer with an RS485 slave port. The device supports different fieldbus protocols like Modbus RTU, Modbus ASCII, DLMS Cosem, and Mbus...The device is configurable via offline software and downlink messages. Ultra-low-power design and smart firmware allow the sensor to run on a C type battery 3.6V for 10 years with one update per day. The sensor will transmit data over kilometers to the LoRaWAN gateway, any brand on the market. It supports all LoRaWAN frequency bands, including EU868, IN865, RU864, KR920, AS923, AS923-2, AU915, and US915.
For Applications
Utility Monitoring, Energy Monitoring, Process Monitoring, Facility Monitoring
LoRaWAN Communication
LoRaWAN Specification V1.0.3
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the device can last up to 10 years with a single battery
Support various Fieldbus Protocols
Support Modbus RTU, Modbus ASCII, DLMS Cosem...
Ex d Zones 1-2-21-22
Ex d approval for installation in Zone 1, Zone 2 or Safe Zone
| Input | 1 x RS485 Master port |
| Protocol | Select Modbus RTU, Modbus ASCII, DLMS Cosem, Mbus etc. (Contact us before ordering) |
| Fault protected RS-485 bus pins | up to ±40V |
| HBM ESD protection on RS-485 bus pins | ±15kV |
| Extened common mode range | ±15V (larger than required for RS-485) |
| High transient over voltage tolerance | ±60V |
| Full fail-safe RS-485 receivers | open, short, terminated |
| Wiring Conduit | 1/2" NPT-F (does not include Exd approved cable gland) |
| COMMUNICATION | |
| SF Factors | SF7∼SF12 |
| Antenna | External antenna |
| Power Supply | C type Battery 3.6V or 12-24VDC, max 40mA |
| RF Frequency and Power | 860∼930MHz, 14∼20 dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN Class A/C V1.0.3 |
| Data sending modes | interval time, alarm and manually triggering by magnetic key |
| Housing | Cast aluminum, IP66 |
| Ex Certification | IMQ 14 ATEX 005 X, TÜV CY 18 ATEX 0206158 X |
| Hazardous Protection Marking | ATEX II 2G Ex db IIC T4 Gb and ATEX II 2D Ex tb IIIC T135℃ Db |
| Standards | IEC EN 60079-0, IEC EN 60079-7 and IEC EN 60079-31 |
| Applicable Zones | Zone 1 & 2 gas hazardous areas |
| Zone 21 & 22 hazardous areas which contain conductive combustible dust | |
| Ambient working temperature | -40∼85℃ (use with SAFT LS26500) |
| Size | Net weight | H145xW100xD73 (not including antenna)/ ≈1100g |
| Mounting type | Wall mount |
Dimension
