LoRaWAN Heavy Duty Digital Input Node
SKU#
WSLRWAL-DI
Replaced by
Replaced SKU
WSLRWAL-DI is a Heavy Duty LoRaWAN Node with powder-coated cast aluminum housing and a high-efficiency/ heavy-duty antenna that comes with 02 digital inputs for detecting the status of the pump, valve... or counting pulses from the flow meter, energy meter... Ultra-low-power design and smart firmware allow the device to run on a single battery type C for 5 years or more with 10 minutes update. It supports global frequency bands EU868, IN865, RU864, KR920, AS923, AS923-2, AU915, and US915. The sensor can work perfectly with any LoRaWAN Gateway on the market.
Typical applications: detecting the status of the pump, valve...or counting pulses from the flow meter, energy meter...
For Applications
Process Monitoring, Safety Monitoring, Energy Monitoring, Electric Meter Reading, Gas Meter Reading, Water Meter Reading, Production Monitoring
LoRaWAN communication
Heavy Duty Design
Support LoRaWAN Class A, connect to any LoRaWAN gateway on the market
5-10 years battery
Ultra-low power technology allows 5-year battery life with a single size C battery
Powder-coated cast aluminum housing and heavy-duty antenna
Plug & Play
The sensor is tested and pre-configured in factory before shipping.

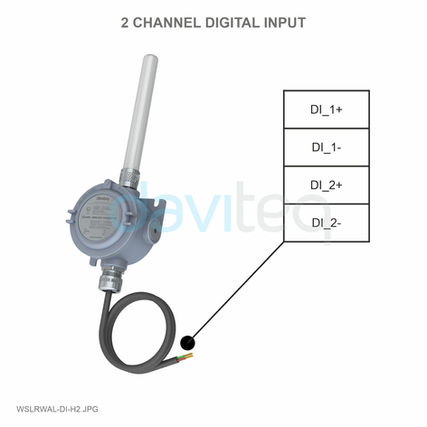

| Digital Inputs | 2-channel dry contact or low voltage (≤3.3V) |
| Operation | Detecting status or Pulse counting (max 1kHz) |
| VERSION | DI-12 (Low-speed digital input) |
| Input | 2-Digital channel inputs with dry-contact or voltage input (max 3.3VDC) |
| Functions | Logic Detecting or Pulse Counting |
| Logic Detecting: 2 channels, recommended minimum interval time between 02 statuses is 5 seconds. | |
| Pulse Counting: 1 channel only, max frequency 2Hz, minimum Pulse width (low or high) is 200mS, counter is uint32 type. | |
| VERSION | DI-12H (High-speed digital input) |
| Input | 2-Digital channel inputs with dry-contact or voltage input (max 3.3VDC) |
| Functions | Logic Detecting or Pulse Counting |
| Logic Detecting: 2 channels, recommended minimum interval time between 02 statuses is 5 seconds. | |
| Pulse Counting: 2 channels, max frequency 1kHz, minimum Pulse width (low or high) is 200μS, counter is uint32 type. | |
| COMMUNICATION | |
| Protocol | LoRaWAN® Class A, V1.0.3 |
| SF Factors | SF7∼SF12 |
| Antenna | External Antenna |
| RF Frequency and Power | 860∼930MHz, 14∼20dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AS923-2, AU915, US915 |
| Data sending modes | interval time, or when status changes, or manually triggered by a magnetic key. |
| Configuration | via Downlink or offline USB cable (PC software is supplied for free) |

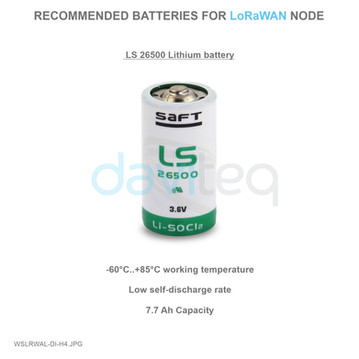

| Battery | 01 x C type LiSOCl₂ 3.6V battery, not included (recommend SAFT LS26500) |
| Housing | Cast aluminum, IP66 |
| Applicable Zones | Safe areas |
| Ambient working temperature | -40∼85℃ (use with SAFT LS26500) |
| Dimensions | H100xW100xD80 (excluded antenna) |
| Net-weight | ≈1200g (without battery) |
| Mounting | Wall mount |
Dimension
1/0
