LoRaWAN Industrial Ambient Temperature Sensor
SKU#
WSLRW-S-ATE
Replaced by
Replaced SKU
WSLRW-S-ATE is an industrial-grade LoRaWAN ambient temperature sensor designed for use in various industries, including food and beverage, warehousing, manufacturing, and agriculture. It utilizes a digital temperature sensor to deliver highly accurate measurements within a range of -35∼70℃. With an ultra-low power design and smart firmware, the sensor can last up to 10 years on a single Lithium AA battery (depending on the configuration). The sensor can transmit data over kilometer distances to any brand of LoRaWAN gateway available on the market.
For Applications

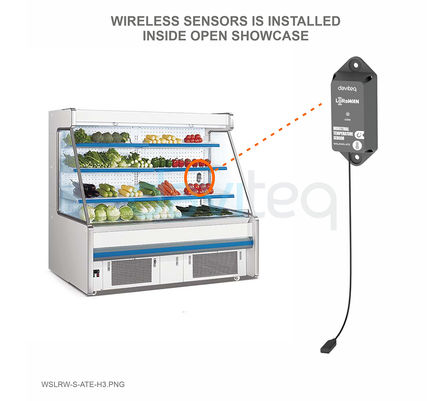

Facility Monitoring, Warehouse Monitoring, Indoor Air Quality Monitor
LoRaWAN communication
LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market.
High Accuracy & Stable
Advanced Digital Temperature Sensor, Factory Calibrated
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with a single AA battery 3.6V
IP68 Sensor Probe
For both indoor and outdoor applications
| Sensor | Digital type, factory calibrated, IP68, immersiable to ice-water for quick validation |
| Measuring range | -35∼70℃ |
| Accuracy & Resolution | < ±0.5℃, 0.125℃ |
| Sensor material | PA plastic with PVC cable |
| Cable length | Select 300mm, 500mm, 900mm |
| Sensor probe rating | IP68 |
| COMMUNICATION | |
| SF Factor | SF7∼SF12 |
| Antenna | Internal Antenna 2.0dbi |
| Power Supply | Primary batteries 1 x AA size 3.6VDC (battery not included) |
| RF Frequency and Power | 860∼930MHz, 14∼20dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN Class A V1.0.3 |
| Data sending modes | Interval time, magnetic key initiation and alarm |
| Alarm function | Low Alarm and High Alarm |
| RF Module complies to | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Vietnam Type Approval | |
| Working temperature | -40∼70℃ (with battery SAFT LS14500) |
| Dimensions | H110xW40xD30 (not included sensor probe and cable) |
| Net-weight | 60g without battery |
| Housing | Engineering Plastic,IP67 |
| Mounting bracket | Come with standard mounting bracket |
Dimension
