LoRaWAN Miniature Radar Level Sensor
SKU#
WSLRW-RLC
Replaced by
Replaced SKU
WSLRW-RLC is an affordable and efficient radar level sensor for various liquid applications. This battery-operated device accurately measures levels of chemicals, water, and oil in tanks. Powered by advanced 60GHz Pulse Radar Technology, it provides reliable measurements with minimal power consumption. With 2 x AA batteries, it can operate for up to 10 years (depending on configuration). It supports all LoRaWAN frequency bands Worldwide. It is suitable for remote level monitoring, inventory management, and tracking mobile tanks in various industries.
For Applications
Level Monitoring, Process Monitoring, Flood Monitoring, Safety Monitoring, Smart Irrigation, Infrastructure Monitoring

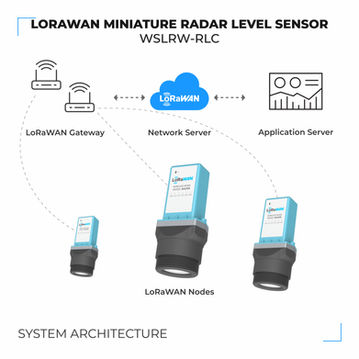

LoRaWAN communication
LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market.
10-Year Battery
Ultra-low power Radar sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years.
High Accuracy & Stable
60GHz Radar technology allow high accuracy and stable
IP67 Outdoor
IP67 design for both Indoor and Outdoor applications
| Sensor Technology | Ultra-low powered 60GHz Radar Technology |
| Measurement range | 0.2∼18m |
| Resolution | ±1.0mm |
| Accuracy | ±10 mm |
| Working process temperature | -40∼85℃ |
| Working process pressure | vacuum to 1 barg |
| Sensor sampling rate | configurable from 1 min up to 60 min |
| Alarm setting | setting the alarm threshold for calculated value |
| COMMUNICATION | |
| SF factors | SF7∼SF12 |
| Antenna | Internal Antenna 2.0dbi |
| Battery | 02 x AA size 1.5VDC, battery not included |
| RF Frequency and Power | 860∼930MHz, 14∼20dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN® Class A |
| Data sending modes | Interval time and when alarm occurred |
| Configuration | via downlink or offline cable (software is free) |
| Certification | CE and FCC |
| Working temperature | -15∼60℃ (with AA L91 Energizer®) |
| Dimensions | H180xW50xD40 |
| Net-weight | 250g |
| Housing | Polycarbonate & POM plastic, IP67 |

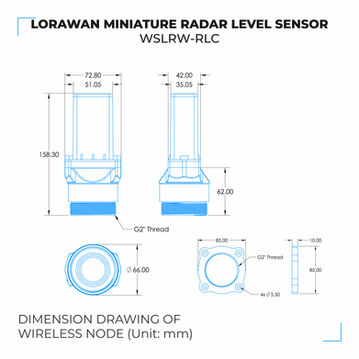

Dimension
Application Notes
