WIRELESS SENSORS

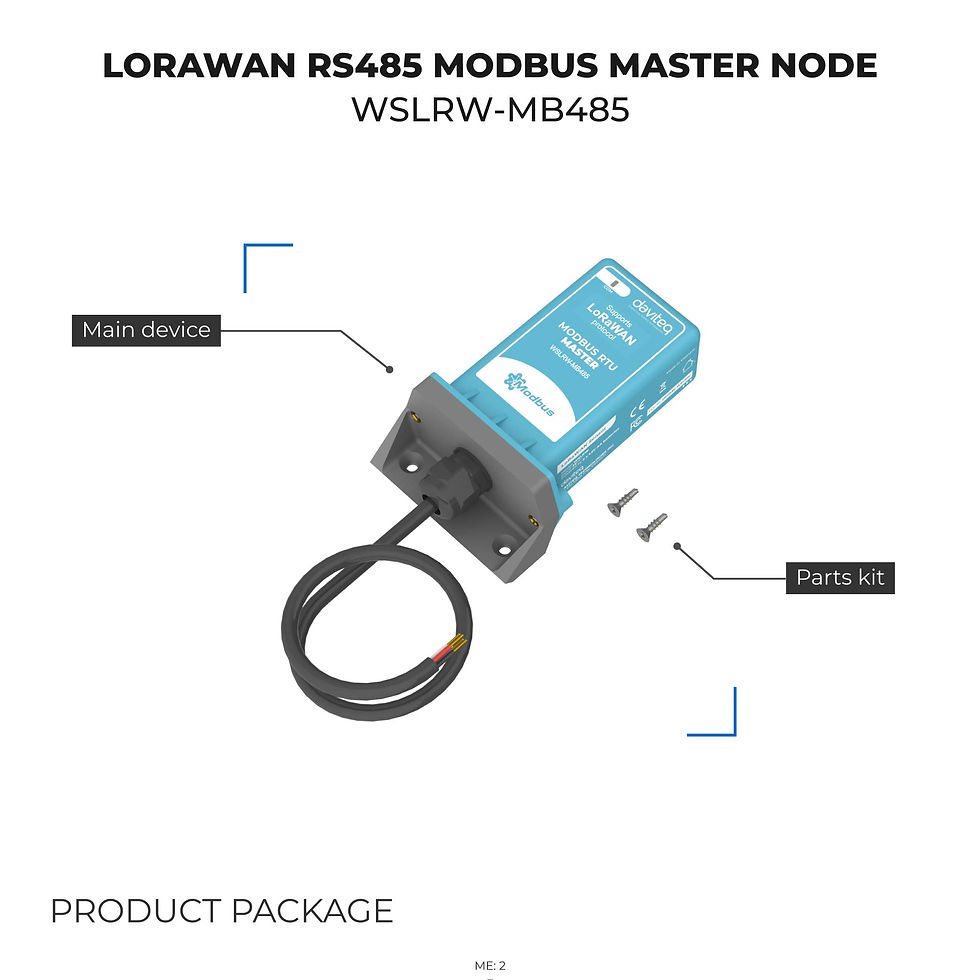

LoRaWAN Node with RS485 Modbus Master Port

SKU#
WSLRW-MB485
Replaced by
Replaced SKU
WSLRW-MB485 is a LoRaWAN node with an RS485 master port to connect to any sensor, water meter, power meter, gas meter, or flow computer with an RS485 slave port. The device supports fieldbus protocols of Modbus RTU. The device is configurable via offline software and downlink messages. Ultra-low-power design and smart firmware allow the sensor to run on a 2 x AA battery 1.5V for 10 years with one update per day. The sensor will transmit data over kilometers to the LoRaWAN gateway, any brand on the market. It supports all LoRaWAN frequency bands.

For Applications

Electric Meter Reading, Gas Meter Reading, Water Meter Reading, Production Monitoring, Facility Monitoring

LoRaWAN Compliance

Compliance with any LoRaWAN gateway and Network Server

10-Year battery

Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 02 x Type AA batteries.

Connection to any RS485 Modbus slave device

Support any Modbus slave device

IP68

For both indoor and outdoor applications

​

Input port1 x RS485 master port
Cable lengthShielded cable with marking A & B wires
ProtocolModbus RTU
Fault protected RS-485 bus pinsup to ±40V
HBM ESD protection on RS-485 bus pins±15kV
Extened common mode range±15V (larger than required for RS-485)
High transient over voltage tolerance±60V
Full fail-safe RS-485 receiversopen, short, terminated
COMMUNICATION
SF FactorsSF7∼SF12
AntennaInternal Antenna 2.0 dbi
Battery02 x AA size 1.5VDC (battery not included)
RF Frequency and Power860∼930MHz, 14∼20dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915
ProtocolLoRaWAN, class A
Data sending modesInterval time and when alarm occurred
CertificationCE, FCC
Working temperature-40∼60℃ (with AA L91 Energizer®)
DimensionsH180xW50xD40
Net-weight250g
HousingPolycarbonate & POM plastic, IP68
MountingWall mount

Dimension

Application Notes

Only available for Logged-in members.​​​​
Please Log in or Register to access this information.
