LoRaWAN Oil Moisture Sensor
SKU#
WSLRW-OMS
Replaced by
Replaced SKU
WSLRW-OMS is a LoRaWAN Oil Moisture Sensor to measure the quality and temperature of lubricant, hydraulic oil, gearbox oil, engine oil, fuel oil, turbine oil... Ultra-low Power design and smart firmware allow the sensor to last up to 5-10 years with a 02 x AA-type battery (depends on configuration). The sensor will transmit data at a kilo-meters distance to the LoRaWAN gateway, any brand on the market.
For Applications
Oil Quality Monitor
LoRaWAN communication
LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market
High Accuracy & Stable
High-sensitive water content measuring technique
5-10 years battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 5-10 years with 02 x AA batteries
Wide applications
To monitor lubricant, hydraulic oil, gearbox oil, engine oil, fuel oil, turbine oil...
| Measuring Technology | High-sensitive water content measuring technique |
| Moisture content | 0-1% |
| Accuracy | 0.02% |
| Resolution | 0.001% |
| Temperature measurement | -40∼120℃ |
| Accuracy | ±0.5℃ max |
| Resolution | 0.1℃ |
| Process connection | G1/2" BSP |
| Wetted Materials | 304SS/316SS/NBR |
| Working Pressure | vacuum to 100 barg |
| COMMUNICATION | |
| SF Factors | SF7∼SF12 |
| Antenna | Internal Antenna 2.0 dbi |

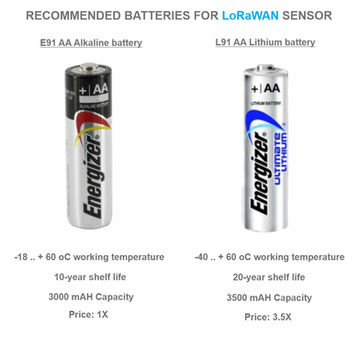

| Battery | 02 x AA size 1.5VDC, battery not included |
| RF Frequency and Power | 860∼930MHz, 14∼20 dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN, class A |
| Data sending modes | Interval time and when alarm occurred |
| Configuration | via Downlink or Offline cable (software is free) |
| RF Module complies to | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Working temperature | -40∼60℃ (with AA L91 Energizer®) |
| Housing/ Protection | Aluminum + Polycarbonate/ IP67 |
| Dimension/ Net weight | H180xW73xD42/ < 400g |
Dimension
1/1
Application Notes
test
