WIRELESS SENSORS

LoRaWAN PT100 Temperature Transmitter

SKU#
WSLRW-PT100
Replaced by
Replaced SKU

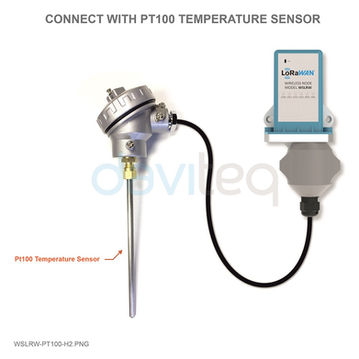

WSLRW-PT100 is LoRaWAN wireless sensor with modular design connected to PT100 temperature sensor, based on 10-year experience in design and manufacturing Industrial sensor of Daviteq Company. It has been factory pre-calibrated for high accuracy and quick set-up. The ultra-low power design and smart firmware allow the sensor to last up to 10 years with 02 x AA battery (depending on configuration). The sensor will transmit data over kilo-meters away to the LoRaWAN gateway, any brand on the market. Some typical applications are temperature monitoring for factories, agriculture, boilers, ...

For Applications

Temperature Monitoring, Process Monitoring, Safety Monitoring

LoRaWAN communication

LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market

Pre-calibrated

Sensors are pre-calibrated at factory to deliver high accuracy and quick installation

10-Year battery

Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 2 x AA batteries 1.5VDC

Outdoor IP67

IP67 design for both Indoor and Outdoor applications and easy cleaning

​

InputPT100 Temperature Sensor
Accuracy0.05%

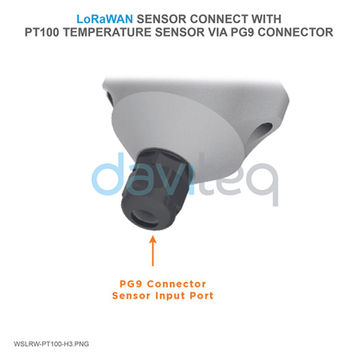

Sensor port connectorPG9 Connector
COMMUNICATION
SF FactorsSF7∼SF12
AntennaInternal Antenna 2.0 dbi
Battery02 x AA size 1.5, battery not included
RF Frequency and Power860∼930MHz, 14∼20 dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915
ProtocolLoRaWAN, class A
Data sending modesInterval time, magnetic key initiation and when alarm occurred
RF Module complies toETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan)
Vietnam Type Approval
Working temperature-15∼60℃ (using L91 Energizer® battery)
DimensionsH180xW90xD50mm
Net-weight300g
HousingPolycarbonate & POM plastic, IP67

Dimension

Application Notes

Only available for Logged-in members.​​​​
Please Log in or Register to access this information.
