LoRaWAN Smart Solenoid Valve Battery Operated
SKU#
WSLRW-ISV
Replaced by
Replaced SKU

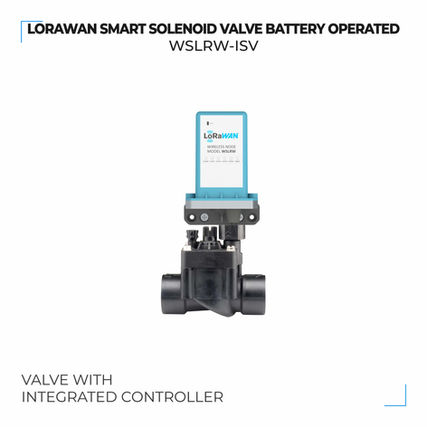

The WSLRW-ISV is an integrated LoRaWAN Latching Solenoid Valve Controller with a built-in latching solenoid valve body, available in sizes ranging from 3/4 inch to 4 inches, specifically designed for irrigation systems and water supply or distribution networks. This all-in-one solution eliminates the need for external valve installation, making deployment faster and more efficient. Engineered with ultra-low power consumption, the device can operate for up to 5 years on battery power, depending on configuration. The WSLRW-ISV transmits data over distances of several kilometers to any brand of LoRaWAN gateway available on the market, ensuring reliable long-range communication in various environments. Ideal for smart irrigation systems in gardens, farms, and hydroponic applications, the WSLRW-ISV is also well-suited for use in building water supply lines, facility management, and FCU control in HVAC systems. Its robust design, seamless wireless integration, and long-lasting battery life make it a high-performance, low-maintenance solution for remote water flow control. By combining valve control and communication in a single unit, the WSLRW-ISV significantly reduces installation complexity and enhances automation in water resource management.
Applications
Utility, Smart Irrigation, Water Distribution
Battery Operated for 5-10 years!
Thanks to smart design in electronics and firmware
High quality Valve Body
10 barg Valve body from 3/4" to 4"
Multi-function controls
Smart control functions allow various applications to be implemented
Support Multi-region LoRaWAN Networks
Support all LoRaWAN frequency bands Worldwide
.
| Valve size | DN20, DN25, DN40, DN50, DN65, DN80, DN100 |
| Materials | Reinforced Nylon (Body), AISI 300 & 400 series (Solenoid trim), NR/EPDM (Diaphragm), NBR Seals |
| Pressure rating | 0.3 - 10 bargs |
| Working temperature | Fluid: 5ºC to 50ºC (no freezing) | Ambient: -10ºC to 50ºC |
| Process connection | BSPT, NPT, Flange (4" only) |
| Manual Operator | Optional |
| Control mode | Scheduled Control, Instant Remote Control, Power-on Control, Fall-back Control |

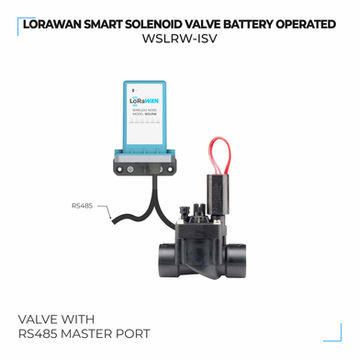

| Optional Communication Port | 1 x RS485 modbus RTU master |
| COMMUNICATION | |
| SF Factors | SF7∼SF12 for EU868, RU864, KR920, AS923 and SF7 for US915, AU915, and IN865 |
| Antenna | Internal Antenna 2 dbi |

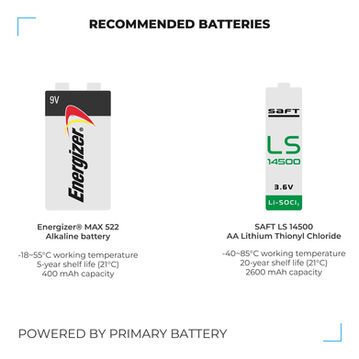

| Power Supply | Primary batteries 01 x AA size 3.6VDC for LoRaWAN and 9V for valve control (battery not included). For version with RS485 port: 2 x AA 3.6V batteries |
| RF Frequency and Power | 860∼930MHz, 14∼20 dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN Class A or Class C V1.0.3 (Class A is default, Class is not recommended for battery operated version) |
| Data sending modes | interval time, alarm and manually triggering by magnetic key |
| Alarm function | Yes |
| Remote control via downlink | Class A or Class C mode |
| CE & FCC | Yes |
| Ambient working temperature for electronics | -40∼85℃ (battery working temperature should be considered separately) |
| Dimension | W78 x H114 x D48 for electronic, for valve body please check drawings |
| Net-weight | 310g (without batteries, for electronics only) |
| Housing | Engineering plastic, IP68 or IP67 (for RS485 port version) |
| Electronic part Mounting | Integrated on valve body or Wall mount (via 2m cable come as standard) |

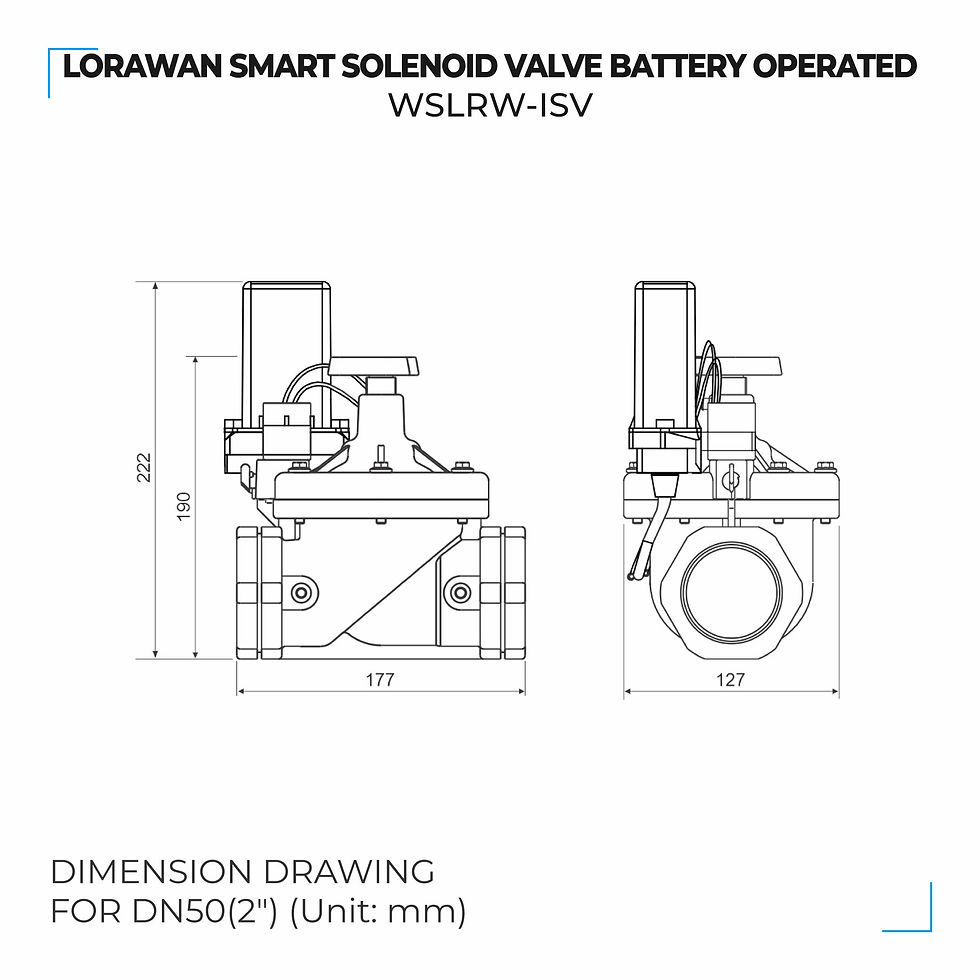

Dimension
