LoRaWAN Tilt Sensor

SKU#
WSLRW-AG
Replaced by
Replaced SKU
WSLRW-AG is a LoRaWAN Tilt Sensor, inclinometer can be used to measure tilt angles X, and Y of any object such as a Tower, Building, Tree, Electricity Tower, Telecom Tower, Bridges... With Ultra-low Power design and smart firmware allow the sensor can last up to 10 years with 02 x AA-type battery (depends on configuration). The sensor will transmit data in kilo-meters distance to the LoRaWAN gateway, any brand on the market.

For Applications

Facility Monitoring, Flood Monitoring, Infrastructure Monitoring, Level Monitoring, Machine Health Monitoring, Safety Monitoring, Tilt Monitoring

LoRaWAN communication

10-Year battery

LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market.

High Precision Tilt Measurment

Advanced Accelerometer to deliver high accuracy and stable measurement of Tilt angles.

Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 02 x Type AA batteries.

Solar Powered for Fast Sampling Rate

Optional version with Solar Power and Rechargeable Batteries for Fast-sampling-rate application

​

Tilt SensorBuilt-in advanced accelerometer to deliver tilt angle measurement of XYZ for AG-01 version, XY for AG-03 version
Tilt Measurement range±90° for AG-01 version | ±30° for AG-03 version
Tilt Resolution±0.01° for AG-01 version | ±0.001° for AG-03 version
Tilt Repeatability±0.075° for AG-01 version | ±0.010° for AG-03 version
Tilt Temperature Drift ±0.2° per 10℃ for AG-01 version (when installation X∼0° and Y∼0°)
Sensor sampling rate1Hz max (recommend for Solar powered version)
Shock DetectionYes, max 2G threshold (only available in some FW version, please consult us)
COMMUNICATION
SF FactorsSF7∼SF12
AntennaInternal Antenna 2 dbi or external antenna
Power SupplyPrimary batteries 02 x AA size 1.5VDC (battery not included) or Solar Panel with Rechargeable batteries 2 x AA Panasonic® Eneloop™ Standard (not included)
RF Frequency and Power860∼930MHz, 14∼20 dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915
ProtocolLoRaWAN Class A V1.0.3
Data sending modesinterval time, alarm (from FW5) and manually triggering by magnetic key
Alarm functionfrom FW5, for X-axis only
RF Module complies toETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan)
Vietnam Type Approval
Working temperature-40∼60℃ (with AA L91 Energizer®)
DimensionsH106xW73xD42
Net-weight190g
HousingAluminum + Polycarbonate plastic, IP68 for Primary battery version and IP67 for Solar/External Power version.

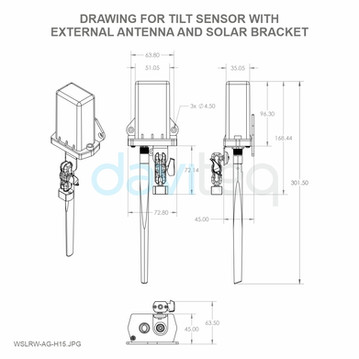

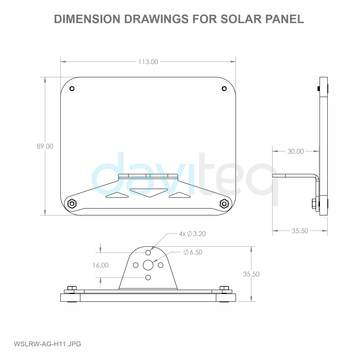

Dimension

Application Notes

Only available for Logged-in member. Please log-in or register to access this information
