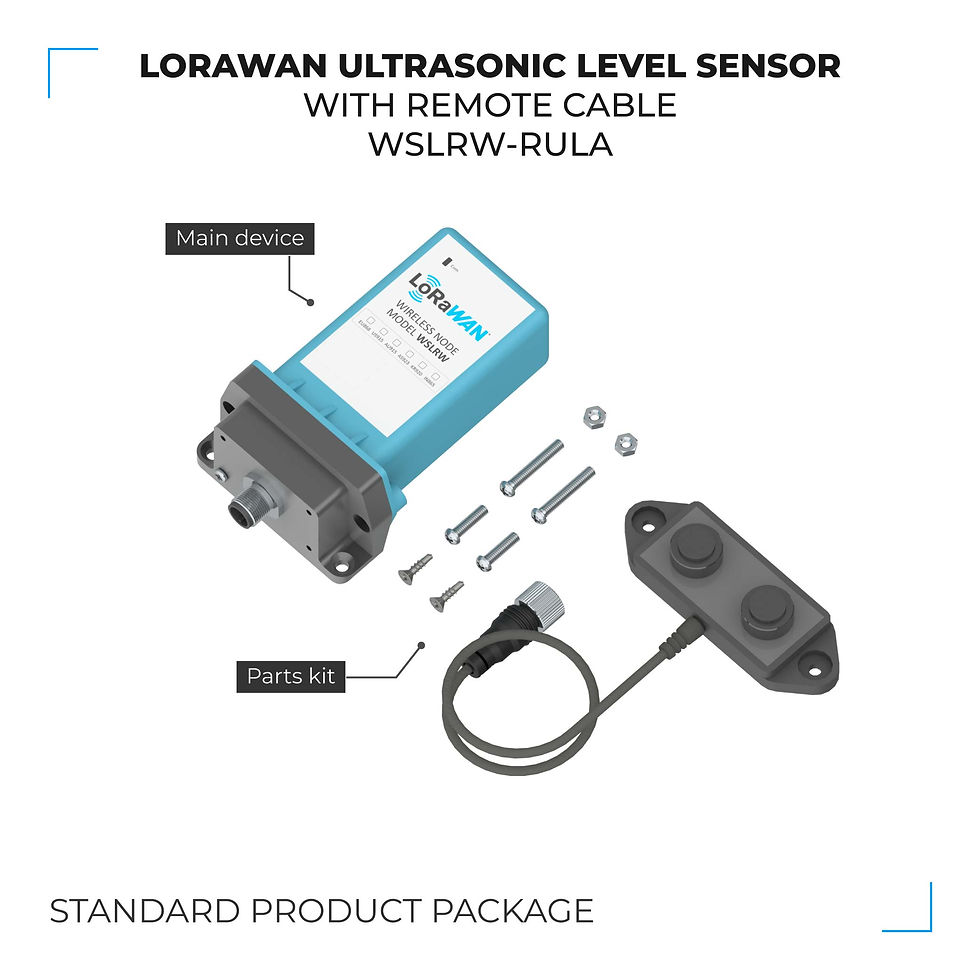

LoRaWAN Ultrasonic Level Sensor with Remote Cable

SKU#

WSLRW-RULA

Replaced by

Replaced SKU

WSLRW-RULA is a LoRaWAN ultrasonic level sensor to measure the water surface level in the small tanks. This level sensor uses ultrasonic technology to measure the solid surface of waste, the principle is to measure the time of flight of the ultrasound pulse in the air environment. The ultrasound pulse will be ejected from the ultrasonic transducer, go thru the air and reach the solid surface of the waste, then be reflected on the ultrasonic transducer, the measuring circuit will measure the flight time of the pulse and then calculate the distance from the transducer to the surface. The ultra-low power design and smart firmware allow the sensor to last up to 5 years with just 2 x AA batteries (depending on configuration). The sensor will transmit data over kilo-meters to the LoRaWAN gateway, any brand on the market. The level sensors are most widely applied in Water & Wastewater Management, Industrial Manufacturing, Agriculture & Irrigation, Food & Beverage and Residential & Smart Homes.

Applications

Water & Wastewater Management, Industrial Manufacturing, Agriculture & Irrigation, Food & Beverage and Residential & Smart Homes.

LoRaWAN communication

LoRaWAN Class A 1.0.3 communication standard to allow sensor connect to any LoRaWAN Gateway on the market

High Accuracy & Stable

Advanced ultrasonic sensor with digital signal processing to deliver high accuracy and stable measurement of level or distance for solid surface of waste

5-10 years battery

Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allows the sensor can last up to 5 years with 2 x AA batteries 1.5VDC

IP68 Outdoor

IP68 design for both Indoor and Outdoor applications and easy cleaning

.

SensorUltrasonic sensor 40kHz
Measurement range3∼450cm
Accuracy±(1cm + 0.5% reading)
Resolutions1mm OR 1‱
Alarm settingsetting the alarm threshold for calculated value
Working temperature/humidity-15∼60℃/ 0∼99% RH (non-condensing)
Storage temperature/humidity-25∼80℃/ 0∼99% RH (non-condensing)
Transducer materialCeramic
COMMUNICATION
SF FactorsSF7∼SF12
AntennaInternal Antenna 2.0 dbi
Battery02 x AA size 1.5, battery not included
RF Frequency and Power860∼930MHz, 14∼20dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915
ProtocolLoRaWAN, class A
Data sending modesInterval time and when alarm occurred
RF Module complies toETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan)
Electronics working temperature-40∼60℃ (using L91 Energizer® battery)
HousingH154xW68xD43, Polycarbonate, IP68
Net-weight250g

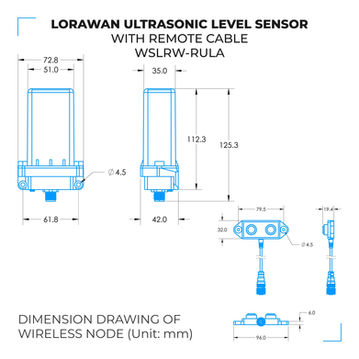

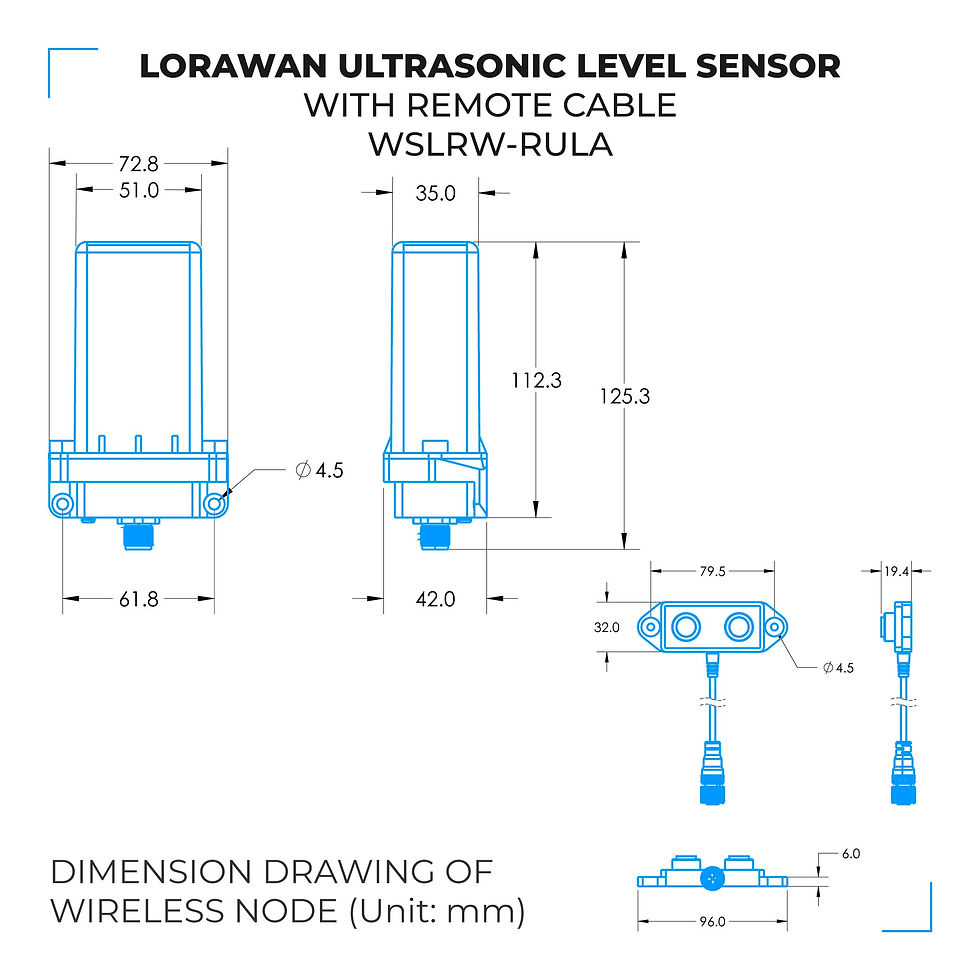

Dimension
