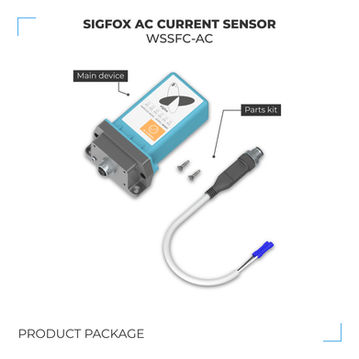

Sigfox AC Current Sensor
SKU#
WSSFC-AC
Replaced by
Replaced SKU
WSSFC-AC is a wireless Sigfox-ready sensor with 1-channel AC current input 5A to measure the AC current load of your motors, machines...to count the energy consumption, OVER-load or NO-load detection, run hour counting… With Ultra-low power design and smart firmware allow the complete Wireless and Sensor package run on 2 x AA battery up to 10 years. It can support all regions of Sigfox network in over the World, RC1, RC2, RC3c, RC4, RC5, RC6, RC7. Typical applications: Monitoring energy consumption, monitoring power supply, monitoring machine health, monitoring machine uptime,...
Applications
Condition Based Monitoring, Machine Health Monitoring, Safety Monitoring, Energy Monitoring, Production Monitoring
Sigfox-Ready
Support RC1, RC2, RC3c, RC4, RC5, RC6, RC7.
Connect any 5A Current Transformers
Allows to setup the ratio of current transformer
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 2 x AA batteries 1.5VDC
High precision and stability
Sensor with smart software provides high accuracy and stability
.
| Measuring range | 0∼5A AC |
| Accuracy | 1.0% |
| Resolution | 10 -bit |
| Temperature Drift | 50 ppm per℃ |
| Electrical connection | cable 0.5m with crimping connectors for easy connection to the CT |
| COMMUNICATION | |
| Sigfox zones | select RC1∼RC7 |
| Antenna | Internal Antenna 2 dbi |
| Configuration | via offline USB cable (PC software is supplied at free) and via Downlink |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) ** 7 years working with 30 minutes update, RC4, 1 x transmit |
| RF Module complies to | CE, FCC, ARIB |
| Working temperature | -40∼60℃ (using Energizer® Lithium Ultimate AA battery) |
| Dimensions & Net-weight | H107xW73xD42, 190g |
| Housing | Aluminum + Polycarbonate, IP67 |
| Mounting | Wall mount bracket |
Dimension
