Sigfox Ambient Light Sensor
SKU#
WSSFC-AL
Replaced by
Replaced SKU
WSSFC-AL is a Sigfox ambient light sensor with built-in the ultra low power light sensor that measures the intensity of visible light. The spectral response of the sensor tightly matches the photonic response of the human eye and includes significant infrared rejection. The precision spectral response and strong IR rejection of the device enables the AL sensor to accurately meter the intensity of light as seen by the human eye regardless of light source. Measurements can be made from 0.01 lux up to 83k lux without manually selecting full-scale ranges by using the built-in, full-scale setting feature. This capability allows light measurement over a 23-bit effective dynamic range. Ultra-low-power design and smart firmware allow the sensor to run on a 2 x AA battery 1.5V for 10 years with one update per day. It can support all RC zones.
For Applications
Facility Monitoring, Safety Monitoring

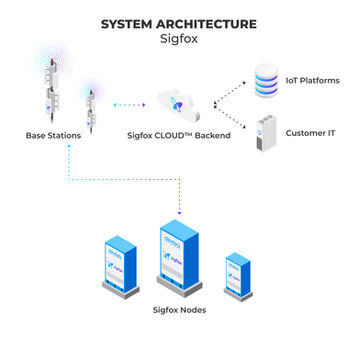

Sigfox Ready
Device are best operating performance on the Sigfox network
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology to allow the sensor can last up to 10 years with 02 x Type AA batteries.
Visible light measurement
Precision Optical Filtering to Match Human Eye, Rejects > 99% (typ) of IR
IP68
For both indoor and outdoor applications
| MEASUREMENT MODULE | |
| Sensor technology | Light sensor with Precision Optical Filtering to Match Human Eye, Rejects > 99% (typ) of IR |
| Measurements range | 0.01 lux to 83 k lux 23-Bit Effective resolution |
| Linearity | 2% of Reading value for > 40 Lux, 5% of Reading value when the light is less than 40 lux |
| Temperature drift | 0.01%/℃ when light intensity is about 2000 lux |
| Operating Temperature Range | –40∼85℃ |
| COMMUNICATION | |
| Sigfox zones | Select RC1-RC2-RC3c-RC4-RC5 -RC6-RC7 |
| Antenna | Internal Antenna 2.0 dbi |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| RF Module complies to | CE, FCC, ARIB |

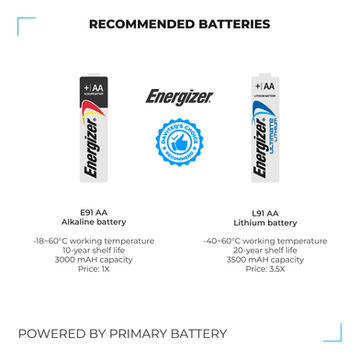

| Working temperature | -40∼60℃ (using Energizer® Lithium Ultimate AA battery) |
| Housing/Protection | Aluminum + Polycarbonate/ IP67 |
| Dimension | H130xW73xD42 |
| Net weight | < 400g |
Dimension
