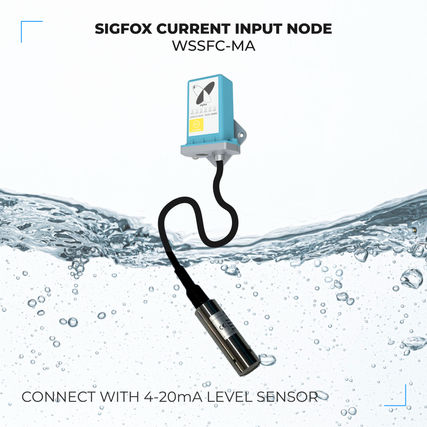

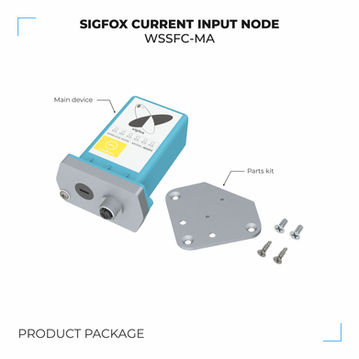

Sigfox Analog Input Node
SKU#
WSSFC-MA
Replaced by
Replaced SKU
WSSFC-MA is the modular design Sigfox wireless sensor, based on 10-year experience in design and manufacturing Industrial sensor of Daviteq Company. It can accepts the analog output signal 0-20mA from any sensor, transmitter... It can supplies the power to external sensor at 15VDC @ 50mA max. With Ultra-low power design and smart firmware allow the complete Wireless and Sensor package run on a Single battery C type up to 10 years. WSSFC-MA can support all regions of Sigfox network in over the World, RC1, RC2, RC3, RC4, RC5, RC6, RC7.
For Applications
Process Monitoring, Safety Monitoring
Sigfox Ready
Device are best operating performance on the SIGFOX network
15V supply to external sensor
Supply 15VDC max 50mA to external sensor
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology to allow the sensor can last up to 10 years with 02 x Type AA batteries.
Pre-calibrated
Analog input 0-20mA is pre-calibrated at factory for quick installation
| Input | 01 x Analog input, 0∼20mA |
| Accuracy | 0.05% of span |
| Resolution | 1/3000 |
| Temperature drift | < 50ppm |
| Power supply to sensor | 15VDC @ max 50mA |
| Electrical connection | M12-M connector |
| COMMUNICATION | |
| Sigfox zones | select RC1-RC7 |
| Antenna | Internal Antenna 2.0 dbi |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| RF Module complies to | CE, FCC, ARIB |
| Working temperature | -40∼60℃ (using Energizer® L91 battery) |
| Dimensions | H106xW73xD42 (Wireless part only) |
| Net weight | 190g (Wireless part only) |
| Housing | Aluminum + Polycarbonate plastic, IP67 |
Dimension
