Sigfox Carbon Dioxide Sensor
SKU#
WSSFC-CO2
Replaced by
Replaced SKU

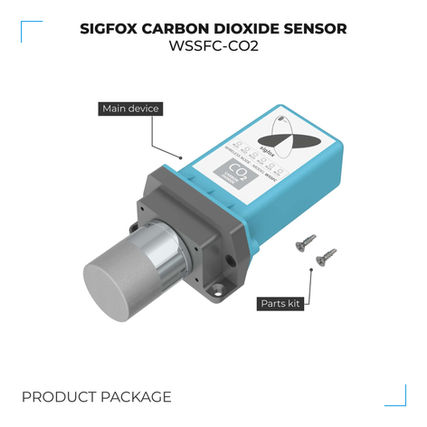

WSSFC-CO2 is a Sigfox-ready sensor utilizes CMOSens® Technology for IR detection enables carbon dioxide measurements of the highest accuracy at a competitive price. Along with the NDIR measurement technology for detecting CO₂ comes a best-in-class humidity and temperature sensor integrated on the same sensor module. Ambient humidity and temperature can be measured by special algorithm expertise through modelling and compensating of external heat sources without the need of any additional components. With Ultra-low power design and smart firmware allow the complete Wireless and Sensor package run on 2 x AA battery 1.5V for 2-5 years with 15 minutes update. It can support all RC zones. Typical Applications: Indoor Air Quality monitoring, HVAC Control, Green house, Smart Agriculture,...
For Applications
Ambient Air Quality Monitor, Indoor Air Quality Monitor, Gas Analyzing, Warehouse Monitoring
Sigfox Ready
Device are best operating performance on the SIGFOX network
High Accuracy & Stable
Advanced ultrasonic sensor with NDIR CO2 sensor technology processing to deliver high accuracy and stable measurement
5-10 years battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can operated up to 5 years with 02 x AA batteries
Measure other parameters
Integrated temperature and humidity sensor to monitor the ambient environment
| CO₂ Sensor technology | NDIR sensor |
| CO₂ range/resolution/accuracy | 0-5000 ppm/ 1ppm/ (±30ppm + 3% reading) (other ranges: 0-10000ppm, 0-100%) |
| Repeatability | ±10ppm |
| Temperature Stability | ±2.5ppm/℃ in range 0-50℃ |
| Temperature range/resolution/accuracy | -40∼70℃/ 0.1℃/ ±0.5℃ in range 0-50℃ |
| Humidity range/resolution/accuracy | 0-100% RH/ 0.1% RH/ ±3.0% RH in range 25-100% RH |
| Sensor Filter | 316SS sintered filter |
| Sensor housing material/ Rating | SS316/ SS304/ for Indoor use |
| COMMUNICATION | |
| Sigfox zones | select RC1-RC2-RC3c-RC4-RC5 -RC6-RC7 |
| Antenna | Internal Antenna 2.0 dbi |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| RF Module complies to | CE, FCC, ARIB |
| Working temperature | -40∼60℃ (using Energizer® Lithium Ultimate AA battery) |
| Housing/Protection | Aluminum + Polycarbonate/ IP67 |
| Dimension | H180xW73xD42 |
| Net weight | < 400g |

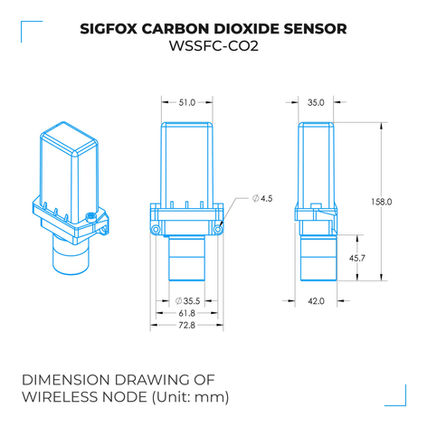

Dimension
WSSFC-CO2-06 - Daviteq Sigfox carbon dioxide (CO2) sensor.jpg
WSSFC-CO2-06 - Daviteq Sigfox carbon dioxide (CO2) sensor.jpg
