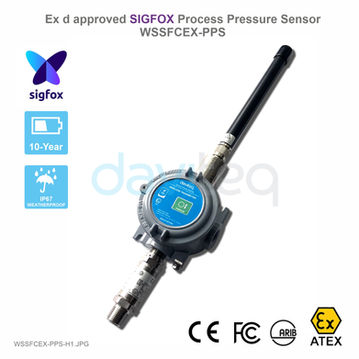

Sigfox Ex d Process Pressure Sensor
SKU#
WSSFCEX-PPS
Replaced by
Replaced SKU
WSSFCEX-PPS is the Sigfox Integrated Process Pressure Sensor with Ex d approval for installation in Zone 1, Zone 2 or Safe Zone, and it has different kinds of measurements, such as Gage/ Absolute/ Sealed Gage, range -1∼1000 barg, high accuracy, and stability. With Ultra-low-power design and smart firmware allow the sensor can last up to 10 years with a single battery (depends on configuration). It can support all regions of Sigfox network in over the World, RC1, RC2, RC3, RC4, RC5, RC6, RC7. Typical applications are pressure monitoring of oil pipeline, gas pipeline, LPG tank, CNG tank, etc.
For Applications
Oil & Gas Pipeline Monitor, Process Monitoring, Safety Monitoring
Sigfox Ready
Device are best operating performance on the SIGFOX network
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with a single battery C
High Accuracy & Stable
Advanced Piezo technology to deliver high accuracy and stable measurement
Ex d Zones 1-2-21-22
Ex d approval for installation in Zone 1, Zone 2 or Safe Zone
| Sensor | Advanced Piezo technology |
| Measurement range | Select from -1∼1000 bar Gage/ Absolute/ Sealed Gage (Over pressure protection: 1.5 x Span) |
| Accuracy & Stability | 0.5% of span, < 0.3% span/ year |
| Wetted parts & Measuring Fluids | 304SS/316SS, Any fluid which is workable with materials 304SS/316SS |
| Process Working temperature | -40∼105℃ |
| Process connection | ½” NPT-male as standard, others please consult factory |
| COMMUNICATION | |
| Sigfox zones | RC1∼RC7 |
| Antenna | N-male type external Antenna |
| Battery | 02 x AA Type 1.5VDC as standard, working time up to 10 years (depends on configuration). 02 x Battery AA 3.6V is also available as optional. |
| ATEX Certificates | IMQ 14 ATEX 005 X, TÜV CY 18 ATEX 0206158 X and IECEx DEK 15.0048X |
| Marking | ATEX II 2G Ex db IIC T5/T6 Gb and ATEX II 2D Ex tb IIIC T100/T85℃ Db |
| Directive | ATEX 2014/34/EU |
| Standards | IEC-EN60079-0 IEC-EN60079-1 IEC-EN60079-31 |
| Applicable zones | Zone 1 - 21 (gas) and Zone 2 - 22 (dust) |
| Ambient working temperature | -40∼85℃ |
| Housing | Cast aluminium, powder coated, IP66 |
| Mounting | wall mounting holes |
| Product dimensions | H520xW100xD80 (included antenna) |
| Net weight | 1.5kg |
| Packaging dimension | W160 x D150 x H250 mm |
| Gross weight | < 1.6kg |
Dimension
