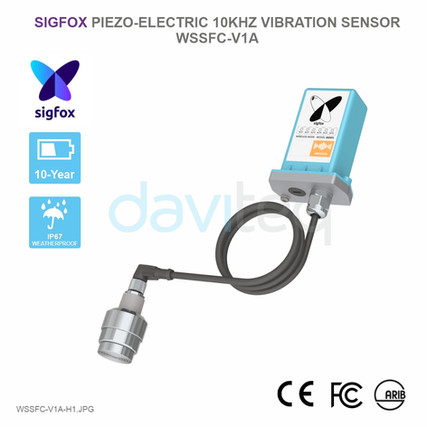

Sigfox Piezo-Electric 10kHz Vibration Sensor
Out of gallery
SKU#
WSSFC-V1A
Replaced by
Replaced SKU
WSSFC-V1A is a cost-effective, Sigfox accelerometer single-axis vibration sensor designed for condition monitoring and preventive maintenance applications. The piezo-electric accelerometer is available in ranges ±25g or 50g and features a flat frequency response up to >10kHz. Besides that, it can also measure the temperature at the mounting point. With Ultra-low power design and smart firmware allow the complete Wireless and Sensor package run on 2 x AA battery up to 10 years. It can support all regions of Sigfox network in over the World, RC1, RC2, RC3, RC4, RC5, RC6, RC7. Typical Applications: Machine Health Monitoring, Predictive Maintenance Installations, Vibration Monitoring, Impact & Shock Monitoring, Bearing monitoring, ...
For Applications
Condition Based Monitoring, Machine Health Monitoring, Safety Monitoring, Vibration Monitoring

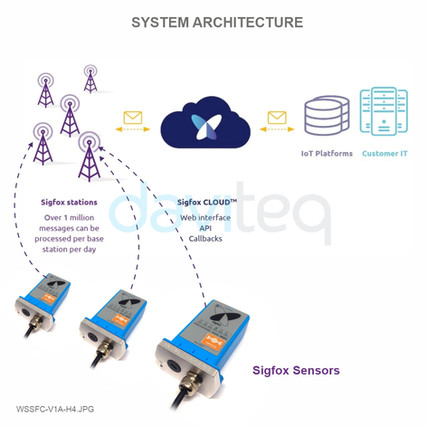

Sigfox Ready
Device are best operating performance on the SIGFOX network
10kHz Bandwidth
Wide bandwidth up to 10,000 Hz
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 2 x AA batteries 1.5VDC
High Performance Piezo-electric sensor
Hermetically Sealed, Piezo-Ceramic Crystal, Shear Mode accelerometer sensor is designed and qualified for machine health monitoring and has superior Resolution, Dynamic Range and Bandwidth to MEMS devices
| (* Note: All below values are typical at +24℃, 80Hz) | undefined |
| Sensor technology | Hermetically Sealed, Piezo-Ceramic Crystal, Shear Mode |
| 8-Parameter Measurement | Acceleration Peak, Velocity RMS & Peak, Displacement RMS & Peak, Frequency, Temperature, and Crest Factor |
| Acceleration Range & Shock Limit (g) | ±25, 10000 |
| Acceleration resolution | 6.1mg |
| Velocity range and resolution | 0∼50mm/s, 0.1mm/s |
| Displacement range and resolution | ±5000µm, 1µm |
| Frequency Response and Resonant (Hz) | 2∼10000, > 30000 |
| Frequency resolution | 2∼10000Hz, 1Hz |
| Non-Linearity, Transverse Sensitivity | ±2% FSO, < 5% |
| Temperature measuring and operating | -40∼85℃, with accuracy: ±0.5 and resolution: 0.125 |
| Sensor Material, rating and mounting | 304SUS, IP67, M6 Screw |
| Connector | M12-M 5-pin (Coding A) with 2m cable, wired to LoRaWAN node |
| COMMUNICATION | |
| Sigfox zones | RC1∼RC7 |
| Antenna | Internal Antenna 2.0 dbi |
| Configuration | via offline USB cable (PC software is supplied at free) and via Downlink |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| ** 7 years working with 30 minutes update, RC4, 1 x transmit | undefined |
| RF Module complies to | CE, FCC, ARIB |

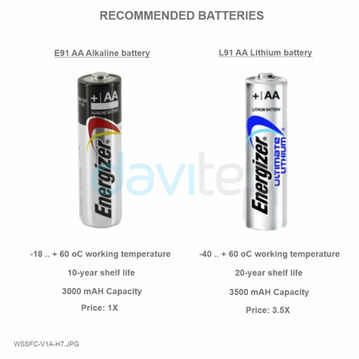

| Working temperature | -40∼60℃ (using Energizer® Lithium Ultimate AA battery) |
| Dimensions & Net-weight | H106xW73xD42, 190g |
| Housing | Aluminum+Polycarbonate, IP67 |
| Mounting | Wall mount bracket |
Dimension
WSSFC-V1A-H6 Sigfox Piezo-Electric 10KHz Vibration Sensor.png
WSSFC-V1A-H6 Sigfox Piezo-Electric 10KHz Vibration Sensor.png
1/1
Application Notes

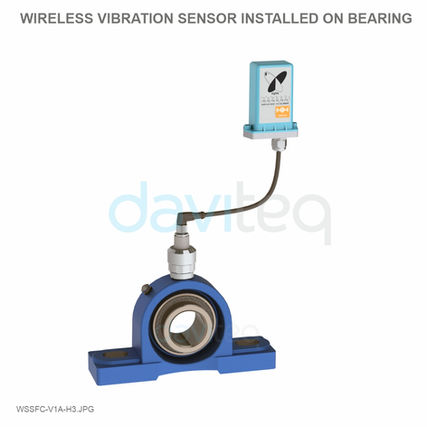

Measure Single-axis vibration and/ or surface temperature of Motor, Bearing, Pump, Fan, Gearbox, Rotary machine/ equipment… with vibration from 2 to 10,000 Hz.
Deliver the overall calculated parameters: RMS acceleration, RMS and peak velocity, RMS and peak-peak displacement, frequency, temperature and crest factor.
DO NOT deliver raw values (acceleration G value in time domain) and parameters in frequency domain (FFT function).
Deliver the overall calculated parameters: RMS acceleration, RMS and peak velocity, RMS and peak-peak displacement, frequency, temperature and crest factor.
DO NOT deliver raw values (acceleration G value in time domain) and parameters in frequency domain (FFT function).
