Sigfox Process Pressure Sensor
SKU#
WSSFC-PPS
Replaced by
Replaced SKU
WSSFC-PPS is a Sigfox-ready integrated Process Pressure Sensor, and it has different kinds of measurements, such as Gage/Absolute/Sealed Gage, range -1∼1000 barg, high accuracy, and stability. The sensor will transmit data in kilo-meters distance to Sigfox base stations. WSSFC-PPS can support all regions of Sigfox network in over the World, RC1, RC2, RC3, RC4, RC5, RC6, RC7.
For Applications
Flood Monitoring, Fuel Monitoring, Level Monitoring, Process Monitoring, Safety Monitoring, Smart Irrigation, Water Pressure Pipeline Monitor
Sigfox Ready
Device are best operating performance on the SIGFOX network
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with a 2 x AA Type battery.
High Accuracy & Stable
Advanced Piezo technology to deliver high accuracy and stable measurement
IP68
IP68 design for both Indoor and Outdoor applications
| Sensor | Advanced PIEZO technology |
| Measurement range | Select from -1∼1000 bar Gage/Absolute/Sealed Gage |
| Over pressure protection | 1.5 x Span |
| Accuracy & Stability | 0.25% or 0.5% of span, < 0.2% span/ year |
| Wetted parts | 304SS/316SS |
| Measuring Fluids | Any fluid which is workable with materials 304SS/316SS |
| Working temperature | -20∼80℃ |
| Compensation temperature | -10∼50℃ |
| Process connection | Standard G 1/4 or Others (consult factory) |
| COMMUNICATION | |
| Sigfox zones | RC1∼RC7 |
| Antenna | Internal Antenna 2.0 dbi |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| RF Module complies to | CE, FCC, ARIB |
| Working temperature | -40∼60℃ (using Energizer® Lithium Ultimate AA battery) |
| Dimensions | H180xW50xD40 |
| Net-weight | 250g |
| Housing | Polycarbonate & POM plastic, IP68 |

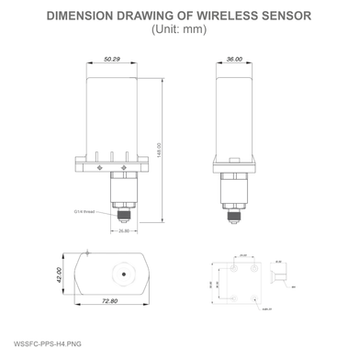

Dimension
