Sigfox PT100 Input Sensor
SKU#
WSSFC-PT100
Replaced by
Replaced SKU

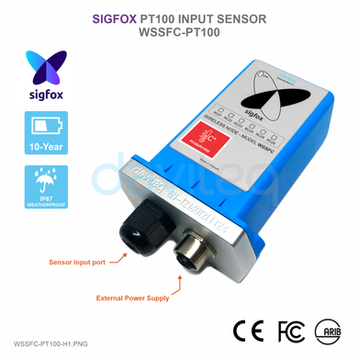

WSSFC-PT100 is a Sigfox-ready node with modular design connected to PT100 temperature sensor, based on 10-year experience in design and manufacturing Industrial sensor of Daviteq Company. It has been factory pre-calibrated for high accuracy and quick set-up. The ultra-Low power design and smart firmware allow the sensor to last up to 10 years with 02 x AA battery (depending on configuration). The sensor will transmit data in kilo-meters distance to Sigfox base station. WSSFC-PT100 can support all regions of Sigfox network in over the World, RC1, RC2, RC3, RC4, RC5, RC6, RC7. Some typical applications are temperature monitoring for factories, agriculture, boilers, ...
For Applications
Temperature Monitoring, Process Monitoring, Safety Monitoring
Sigfox Ready
Device are best operating performance on the SIGFOX network
Pre-calibrated
Sensors are pre-calibrated at factory to deliver high accuracy and quick installation
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 2 x AA batteries 1.5VDC
For Outdoor
IP67 design for both Indoor and Outdoor applications and easy cleaning
| Input | PT100 Temperature Sensor |
| Accuracy | 0.05% |
| Sensor port connector | PG9 Connector |
| COMMUNICATION | |
| Sigfox zones | RC1∼RC7 |
| Antenna | Internal Antenna 2.0 dbi |
| Data sending modes | Interval time and when alarm occurred |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| RF Module complies to | CE, FCC, ARIB |
| Working temperature | -40∼60℃ (using Energizer® Lithium Ultimate AA battery) |
| Dimensions | H118xW73xD42 |
| Net-weight | 250g |
| Housing | Polycarbonate & POM plastic, IP67 |
Dimension
1/0
Application Notes
Temperature Range: Identify the needed measurement range.
Chemical Resistance: Check PT100 wire compatibility with the environment.
Abrasion/ Vibration Resistance: Select a transmitter that can handle abrasion and vibration.
Installation Requirements: Match probe diameter with existing equipment and probe hole sizes.
Chemical Resistance: Check PT100 wire compatibility with the environment.
Abrasion/ Vibration Resistance: Select a transmitter that can handle abrasion and vibration.
Installation Requirements: Match probe diameter with existing equipment and probe hole sizes.
