WIRELESS SENSORS

Sigfox-Ready Gas Sensor for General Industries

SKU#

WSSFC-G4H

Replaced by

Replaced SKU

5 years with 15 minutes update time, with only 1 size-D battery. The sensor supports Sigfox zones RC1, RC2 and RC4.

Typical applications: Kitchen and food processing; production facilities and factories; hospital; retail store; transportation and logistics; laboratory; hotel and entertainment; apartment.

For Applications

Indoor Air Quality Monitor, Gas Analyzing, Warehouse Monitoring, Odor Monitoring

Sigfox-Ready

Support Sigfox Zones RC1, RC2, and RC4

IP66 Rating

Polycarbonate housing with IP66

> 5-year battery

With ultra-low-power design and smart firmware, the sensor can last more than 5 years with single size-D battery

Plug & Play

The sensor is pre-configured before shipping

​

Type of measuring gaschoose 1 of CH₄, C₃H₈, O₂, CO₂, CO, SO₂, H₂S, NO₂, H₂, NH₃ gases
Measurement technologyhigh performance NDIR, high performance electrochemical sensor
Measuring range0-100% LEL for CH₄, C₃H₈, O₂ 0-25%, CO₂ 0-5000ppm, CO 0-200ppm, SO₂ 0-20ppm, H₂S 0-50ppm, NO₂ 0-20ppm, H₂ 0-1000ppm, NH₃ 0-100ppm
Resolution0.1% or 0.1ppm, 0.01ppm
Sensor working temperature-20∼60°C
Sensor Working humidity15-90% RH, non-condensing
MTBF (lamp dependent only)> 10 years for CH₄, C₃H₈ and CO₂ sensors, 2 years for remaining sensors
Operating pressure700kPa to 1300kPa
Sigfox regions supportedRC1, RC2 and RC4
AntennaInternal antenna 2.67 dbi
Data sending modeinterval, alarm occurs and is activated by magnet key.
RF module compliantETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (USA), ARIB STD-T108 (Japan)
Configurationvia USB cable (PC software provided free of charge)
Battery01 x LiSOCl2 3.6V battery
HousingPolycarbonate, IP66
DimensionsH154xW104xD70
Net weight< 300 grams (without battery)
InstallationWall bracket

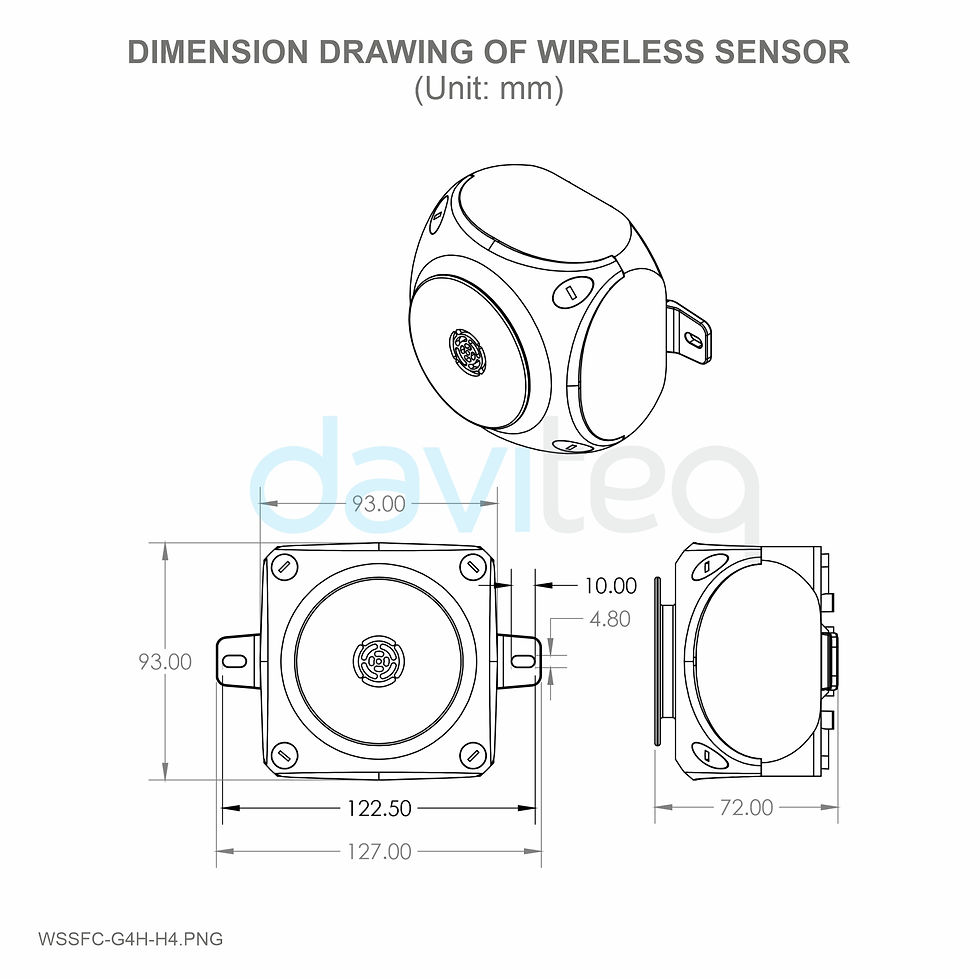

Dimension

Application Notes

Only available for Logged-in member. Please log-in or register to access this information
