Sigfox Soil Moisture Sensor
Out of gallery
SKU#
WSSFC-SMT
Replaced by
Replaced SKU
WSSFC-SMT is the modular design Sigfox-ready sensor, based on 10-year experience in design and manufacturing Industrial sensor of Daviteq Company, can be used to measure the Soil Moisture, Fertilizer (NPK) and Soil Erosion, too. With Ultra-low power design and smart firmware allow the complete Wireless and Sensor package run on a battery AA type up to 10 years. The Moisture sensor utilises the Frequency Domain measuring technique to deliver high accuracy and stable measurement of Soil moisture. The Moisture value is not affected by fertilizer content and temperature like other simple Capacitance Moisture Sensor on the market. The sensor will transmit data in kilo-meters distance to Sigfox base station. The typical applications are Smart Agriculture, Automatic Irrigation System, Soil Quality Measurement, Soil Erosion Monitoring... WSSFC-SMT can support all regions of Sigfox network in over the World, RC1, RC2, RC3, RC4, RC5, RC6, RC7.
For Applications
Flood Monitoring, Infrastructure Monitoring, Smart Irrigation
Sigfox Ready
Device are best operating performance on the SIGFOX network
Pre-calibrated
Sensors are pre-calibrated at factory for quick installation
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 02 x AA batteries
High Accuracy & Stable
Utilize advanced technology, Frequency Domain Reflectometry to deliver high accuracy and stable measurement of Soil Moisture, not affected by Fertilizer contents and Temperature like the simple Capacitance Moisture Sensor on the marker
| Moisture, EC & NPK Sensors | Advanced technology - Frequency Domain Reflectometry, Pre-calibrated at factory |
| Moisture range/ accuracy/ resolution | 0∼100%, acc ±3.0% , res 0.01% |
| Temperature range/ accuracy/ resolution | -30∼70℃, acc ±0.3℃, res 0.1℃ |
| EC range/ accuracy/ resolution | 0∼20 mS/cm, acc ±2.0% span, res 0.1 mS/cm |
| NPK Measuring range | 0∼1999mg/kg |
| NPK Measurement accuracy & Resolution | Acc ±2% FS, res 1mg/kg (mg/L) |
| Response Time | < 1s |
| Measurement Volume | Dia. 70mm x Height 70mm |
| Wetted materials | 316L SS & thermoplastic |
| Sensor Dimensions | 71x45x16mm with probes 70mm and signal cable 2m |
| Optional Soil Erosion Sensor | Clinometer type, ±90° of XYZ, 0.03o resolution, 1Hz max sampling rate |
| Soil Erosion Probe | Dia. 10mm x Length 300mm with signal cable 2m, SS304 material |
| COMMUNICATION | |
| Sigfox zones | RC1-RC7 |
| Antenna | Internal Antenna 2.0 dbi |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| RF Module complies to | CE, FCC, ARIB |
| Working temperature | -40∼60℃ (with AA L91 Energizer®) |
| Dimensions | H106xW73xD42 (Wireless part only) |
| Netweight | 190g (Wireless part only) |
| Housing | Aluminum + Polycarbonate plastic, IP67. |

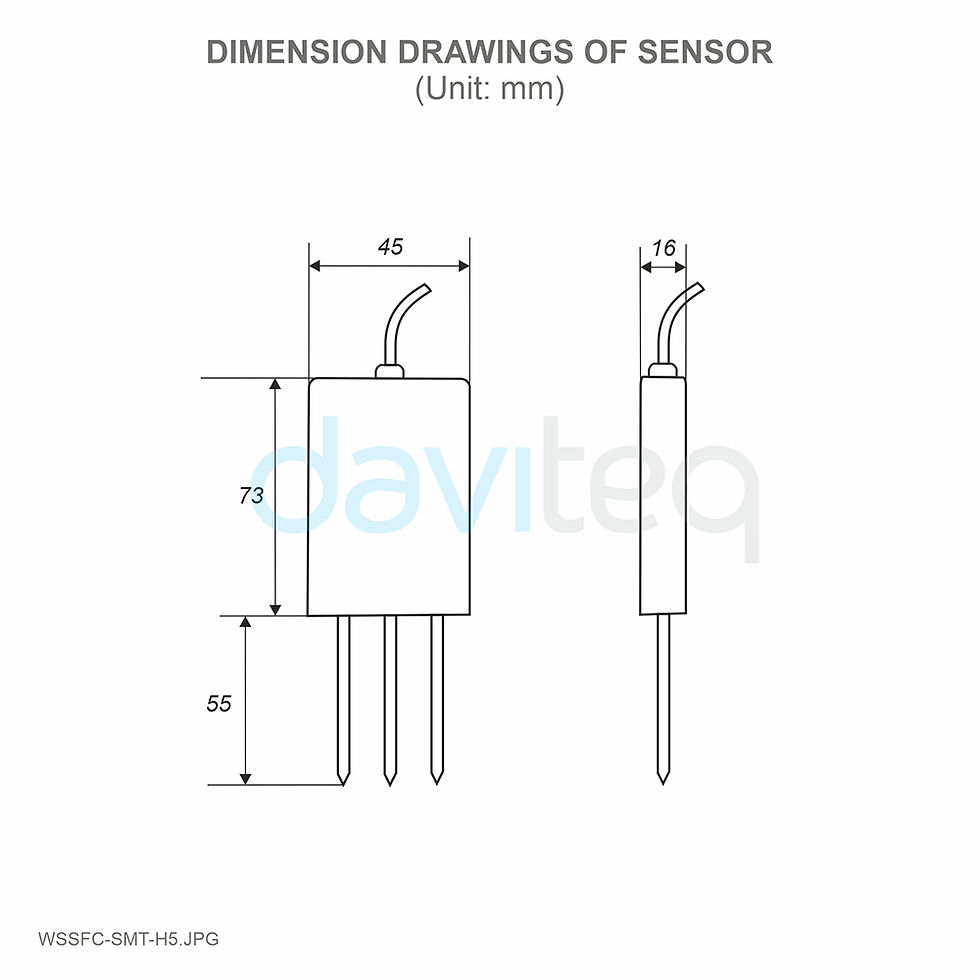

Dimension
1/2
