Sigfox Ultrasonic Level Sensor for Trash bin ULA
SKU#
WSSFC-ULA
Level
Normally Stock
Safe Zone
Sigfox
Replaced by

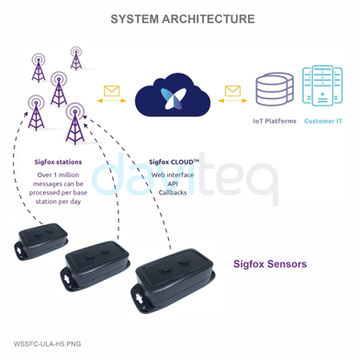

WSSFC-ULA is a Sigfox-ready ultrasonic level sensor to measure the solid surface level in the trash bin for waste management systems. This level sensor uses ultrasonic technology to measure the solid surface of waste, the principle is to measure the time of flight of the ultrasound pulse in the air environment. The ultrasound pulse will be ejected from the ultrasonic transducer, go thru the air and reach the solid surface of the waste, then be reflected back to the ultrasonic transducer, the measuring circuit will measure the flight time of the pulse then calculate the distance from the transducer to the surface. Ultra-low power design and smart firmware allow the complete Wireless and Sensor package to run on 2 x AA battery 1.5V for 5 years (depending on configuration). It can support all RC zones. Typical Applications: Monitoring the waste level in the trash bin, solid waste & recycling facility,...
Sectors
Smart Agriculture, Smart Building, Smart City, Smart Facility, Smart Farm, Smart Factory, Smart Transportation
For Applications
Waste Management, Process Monitoring, Safety Monitoring, Infrastructure Monitoring
Sigfox-Ready
Support all RC zones
5-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can operated up to 5 years with 02 x AA batteries
High Accuracy & Stable
Advanced ultrasonic sensor with digital signal processing to deliver high accuracy and stable measurement of level or distance for solid surface of waste
IP68 Outdoor
IP68 design for both Indoor and Outdoor applications and easy cleaning
