Smart Vortex Flow Meter
SKU#
SVF128
Replaced by
Replaced SKU

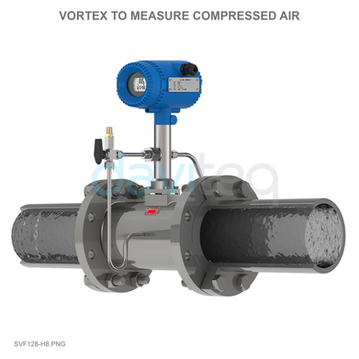

SVF128 Vortex flow meter is a smart vortex flow meter utilizing “Kármán vortex” theory to measure the velocity of fluid then calculate the flow rate in volume or mass. VFM128 is to use for various fluids such as gas, steam and liquid. The flow meter come with local or remote display and different type output such as 4-20mA, pulse, RS485 Modbus RTU, Hart for easily integrate into any PLC, SCADA, DCS system. The flow meter can be upgraded with latest wireless connectivity such as Sub-GHz, LoRaWAN, Sigfox, NB-IoT, 3G/4G... allow it to connect to any IoT platform such as Globiots, Azure, AWS...

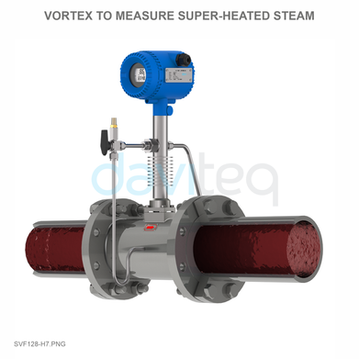

Typical Applications: Saturated Steam, Super-heated Steam, Compressed Air, Liquid, Industrial Gases: Nitrogen, Oxygen... or Fuel Gas: Natural Gas...
For Applications
Energy Monitoring, Facility Monitoring, Utility Monitoring, Process Monitoring, Flow Monitoring,
High turn down ratio
Super low flow measurement down to 2m/s
Multi-variable Measurement
Volumetric flow, pressure, temperature and mass flow
Anti-vibration
Unique and patented sensor design to eliminate vibration
No moving parts
not worry about mechanical wear parts
| Process Fluids | Liquid, Gas, Steam, Compressed Air |
| Process connection | Flange or Wafer for size DN15∼DN300 or 0.5 inch to 12 inch |
| Local Display | Standard integral LCD display. Optional Remote display with 10m cable |
| Measurable Parameters of standard version | Volumetric flow rates and totalizer, velocity. |
| Measurable Parameters of Multi-variables version | Mass flow rate, volumetric flow rate, temperature, pressure, velocity. |
| Output | Pulse, 4∼20mA (HART V5, V7 @4∼20mA), ModbusRTU RS485 |
| Process Pressure | 1.6MPa (232 psiG),2.5MPa (362 psiG),4.0MPa (580 psiG),6.3Mpa (913 psiG) for option |
| Process Temperature | Standard type: -40∼150℃ or -40∼302℉ Medium type: -40∼250℃ or -40∼482℉ High temperature type: -40∼350℃ or -40∼662℉ |
| Gas flow Turndown | DN15, DN20: Turndown ratio 10:1 DN25, DN32: Turndown ratio 15:1 DN40∼DN300: Turndown ratio 30:1 |
| Steam flow Turndown | DN15, DN20: Turndown ratio 11.6:1 DN25, DN32: Turndown ratio 17.5:1 DN40∼DN300: Turndown ratio 35:1 |
| Liquid flow Turndown | 23:1 |
| Accuracy | Gas/ Steam: ±1% RD (Re ≥ 20000), ±2%RD(10000 < Re < 20000) Liquid: ±0.75% RD (Re ≥ 20000), ±2% RD (10000 < Re < 20000) |
| Repeatability | ±0.3% of flow reading, ±0.05℃ for temperature, ±0.05% FS of pressure |
| Upstream/ Downstream required | 15D/ 5D |
| Viscosity allowance | DN15 or 0.5 inch ≤ 4mPas DN25 or 1 inch ≤ 5mPas DN40∼DN300 or 1.5∼12 inch ≤ 7mPas |
| Anti-vibration (both punch and fixed freq) | 0.5g |
| Power Supply | 15.5∼42VDC |
