Sub-GHz Gas Detecting Sensor
SKU#
WS433-G4
Replaced by
Replaced SKU

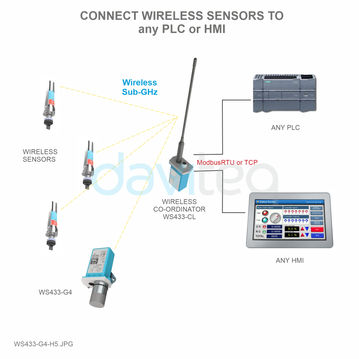

WS433-G4 is a Sub-GHz electrochemical-type gas sensor with a high sensitivity to low concentrations of detected gas, high selectivity, and a stable baseline. The device supports different types of gas such as CO, NO, NO₂, H₂S, NH₃, O₂, O₃, SO₂, Cl₂, HCHO... Ultra-low Power design and smart firmware allow the sensor to last up to 5 years with a 02 x AA-type battery (depending on configuration). The sensor will transmit data at a hundred meters distance to the Wireless Coordinator WS433-CL. The coordinator will give output RS485 ModbusRTU to any SCADA or DCS system.
<br>
<br>Typical Applications: Gas, toxic gas detecting, air quality monitoring for facility, building, pump station, HVAC...
For Applications
Ambient Air Quality Monitor, Indoor Air Quality Monitor, Gas Analyzing, Warehouse Monitoring, Gas Leakage Detection
Sub-GHz Technology
High performance Sub-GHz wireless technology from TI
High Accuracy & Stable
Advanced electrochemical-type gas sensor technology processing to deliver high accuracy and stable measurement
Ultra-low power with 5 years battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 5 years with 02 x AA batteries
Multiple choices of gas
Select CO, NO, NO₂, H₂S, NH₃, O₂, O₃, SO₂, Cl₂, HCHO...
| SENSOR SPECIFICATION | undefined |
| Gas sensor type and specification | List of compatible gas sensors and specification |
| Sensor housing/ Rating | SS316/SS304 housing with 316SS sintered filter/ for Indoor use (buy the optional accessory rain-guard for outdoor installation) |
| SUB-GHZ TRANSMITTER | undefined |
| Technology | Sub-GHz, ISM 433MHz |
| Antenna | Internal Antenna |
| Battery | 02 x AA Energizer® L91, life time up to 5-10 years (depending on configuration). Batteries are not included. |
| Frequency band and Power | 433-434MHz, +10 dBm |
| Configuration | via Downlink |
| Data transmission mode | internal or alarms occur |
| RF Module complies to | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Vietnam Type Approval Certificate | QCVN 73:2013/BTTTT, QCVN 96:2015/BTTTT (DAVITEQ B00122019) |
| Working temperature | -40∼60℃ (with AA L91 Energizer®) |
| Housing/Protection | Aluminum + Polycarbonate/ IP67 |
| Dimension/ Net weight | H180xW73xD42/ < 400g |
Dimension
1/0
Application Notes
