Wireless Process Temperature Sensor
SKU#
WS433-M12F-PTE
Replaced by
Replaced SKU
Wireless Process Temperature Sensor is a combination of wireless sensor transmitter WS433-M12F and Process Temperature Sensor PTE, utilizes digital temperature sensor delivers high accuracy measurement in range -20∼85℃. Easy connect to WS433-M12(-T) via M12 connector. Optional 1m extension cable can be used for some special case. This sensor is mainly used to measure temperature of chiller water, food liquid, chemical of any liquid, compressed air, nitrogen, oxygen, ammonia gas... With Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power consumption. It is configured the operation parameters like data sending interval, health check cycle... remotely from Globiots platform or via ModbusRTU software. The wireless sensor can last up to 10 years with a single AA battery.
For Applications
Temperature Monitoring, Process Monitoring, Safety Monitoring
For Gas or Liquid
For measuring temperature of chiller water, food liquid, chemical of any liquid, compressed air, nitrogen, oxygen, ammonia gas...
High accuracy
Digital sensor with factory-calibration
Plug & Play
Just plug the pressure module onto WS433-M12F via M12 connector, then it works automatically
High Pressure
Can withstand up to 20 barg process pressure
| SENSOR SPECIFICATION : | |
| Sensor | Digital type, factory calibrated, IP67, immersible to ice-water for quick validation |
| Measuring range | -20∼85℃ |
| Accuracy & Resolution | ±0.5℃, 0.125℃ |
| Probe length & Material | 50, 100 & 200mm, 304SS |
| Process Pressure | -1 to 20 barg |
| Process Connection | 1/2-14 NPT |
| Electrical connection | M12-male connector |
| WIRELESS TRANSMITTER SPECIFICATION : | |
| Data speed | Up to 50kbps |
| Tranmission distance, LOS | 1000m |
| Antenna | Internal Antenna |
| Battery | 01 x AA 1.5-3.6VDC, up to 10-year operation, depends on configuration |
| Frequency Band | ISM 433MHz, Sub-GHz technology from Texas Instrument, USA |
| International Compliance | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Vietnam Type Approval Certification | QCVN 73:2013/BTTTT, QCVN 96:2015/BTTTT (DAVITEQ B00122019) |
| Security Standard | AES-128 |
| Operating temperature of PCB | -40∼60℃ (with AA L91 Energizer®) |
| Housing | Poly-carbonate, IP67 |
| Installation method | L-type bracket SUS304 , by M4 screws or double-sided 3M tape (included) |
| Product dimensions & weight | 125x30x30mm, < 60g (without battery) |
| Box dimension & gross weight | 190x50x50mm, < 100g |

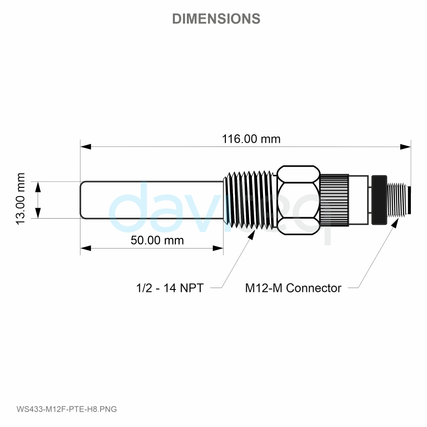

Dimension
