Wireless PT100 Temperature Sensor
SKU#
WS433-PT100
Replaced by
Replaced SKU
Wireless PT100 Temperature Sensor WS433-PT100 is wireless sensor with modular design connected to PT100 temperature sensor via PT100 sensor converter cable with M12 connector, it utilizes Digital temperature sensor delivers high accuracy measurement in range 0∼100℃. The wireless transmitter is Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power consumption. It will connect 2-way wirelessly to the wireless co-ordinator WS433-CL to send data and receiving the configuration. It can be configured the operation parameters like data sending interval, health check cycle... remotely from Globiots platform or via ModbusRTU software (thru the WS433-CL). Its default data rate is 50kbps, can be switched to 625bps to increase the communication range. It can last up to 10 years with a single AA battery. There are a lot of applications as environment monitoring for factories, agriculture, boilers, ...
For Applications
Temperature Monitoring, Process Monitoring, Safety Monitoring
Reliable & Secured Wireless Connection
Sub-Ghz technology from Texas Instruments allows reliable wireless connection and secured data by AES-128
High accuracy
Sensors are pre-calibrated at factory to deliver high accuracy and quick installation
10-year with a single battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology fromTexas Instruments allow the sensor can last up to 10 years with a single battery AA.
IP67 Weather-proof
Wireless transmitter with IP67 design for for both Indoor and Outdoor applications
| Input | PT100 Temperature Sensor |
| Accuracy | 0.05% |
| Sensor port connector | M12-Female Connector |
| Accessories | Pt100 sensor converter cable 0.5m length with M12-Male connector (not include) |
| Data speed | Up to 50kbps |
| Tranmission distance, LOS | 500m |
| Antenna | Internal Antenna, 3 dbi |
| Battery | 01 x AA 1.5VDC, up to 10-year operation, depends on configuration |
| Frequency Band | ISM 433MHz, Sub-GHz technology from Texas Instrument, USA |
| International Compliance | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Security Standard | AES-128 |
| Operating temperature of PCB | -40∼60℃ (with AA L91 Energizer®) |
| Housing | Poly-carbonate, IP67 |
| Installation method | L-type bracket SUS304 , by M4 screws or double-sided 3M tape (included) |
| Product dimensions | 125x30x30mm |
| Net weight (without battery) | < 60g |
| Box dimension | 190x50x50mm |
| Gross weight | 100g |

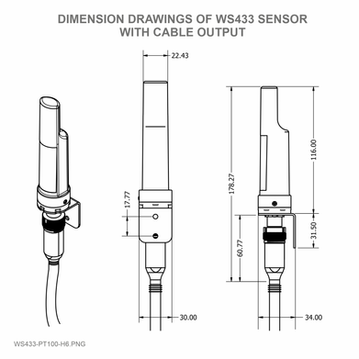

Dimension
