Wireless Sensor 0-20mA Current Input
SKU#
WS433-MA
Replaced by
Replaced SKU
Wireless sensor with one channel to measure 0-20mA DC current from Process instruments like Pressure transmitter, Temperature transmitter, Level transmitter, Flow meters, Analyzers... at very low voltage drop. It is configured the operation parameters like data sending interval, health check cycle... remotely from Globiots platform or via ModbusRTU software. The wireless module can last up to 10 years with a single AA battery.
For Applications
Process Monitoring, Safety Monitoring
Reliable & Secured Wireless Connection
Sub-Ghz technology from Texas Instruments allows reliable wireless connection and secured data by AES-128
Low Voltage Drop
Only 3.0VDC voltage drop on the current loop
10-year with a single battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology fromTexas Instruments allow the sensor can last up to 10 years with a single battery AA.
Long range Transmission
Narrow Band techniques & Sub-Ghz technology allow long distance transmisison at lowest energy consumption
| Measuring range | 0∼20mA |
| Accuracy | 0.05% of span |
| Resolution | 1/3000 |
| Temperature drift | < 50ppm |
| Electrical connection | shielded cable 0.5m length with PG9 cable gland |
| Optional accessories | 304SS Adapter PG9/male 1/2"NPT or PG13.5 or M20 to allow direct mounting on Process instruments or electrical panel |
| Data speed | Up to 50kbps |
| Tranmission distance, LOS | 500m |
| Antenna | Internal Antenna, 3 dbi |

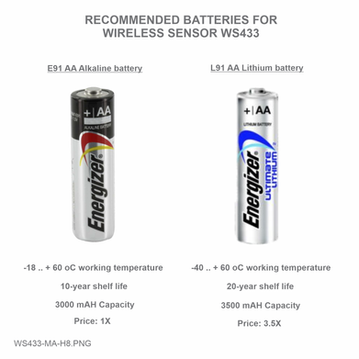

| Battery | 01 x AA 1.5VDC, up to 10-year operation, depends on configuration |
| Frequency Band | ISM 433MHz, Sub-GHz technology from Texas Instrument, USA |
| Receiving Sensitivity | -110dBm at 50kbps |
| International Compliance | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Security Standard | AES-128 |
| Operating temperature of PCB | -40∼60℃ (with AA L91 Energizer®) |
| Housing | Poly-carbonate, IP67 |
| Installation method | L-type bracket SUS304 , by M4 screws or double-sided 3M tape (included) |
| Product dimensions | 125x30x30mm |
| Net weight (without battery) | < 100g |
| Box dimension | 190x50x50mm |
| Gross weight | 140g |
Dimension
1/0
Application Notes
mA sensor power supply: Check transmitter output of 15 VDC to match mA sensor if sensor power source is from transmitter
Accuracy and resolutions: Check whether those meet the requirements
Environmental Conditions: Account for temperature, humidity, and other environmental factors.
Mounting and Enclosure: Determine the mounting method and enclosure type.
Compatibility: Ensure compatibility with your existing system or sensors.
Accuracy and resolutions: Check whether those meet the requirements
Environmental Conditions: Account for temperature, humidity, and other environmental factors.
Mounting and Enclosure: Determine the mounting method and enclosure type.
Compatibility: Ensure compatibility with your existing system or sensors.
