Wireless Sensor Transmitter
SKU#
WS433-M12F
Replaced by
Replaced SKU
WS433-M12F Wireless sensor transmitter utilizes the Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power consumption. This wireless module can connect with many kinds of measurement sensor, such as temperature, humidity, pressure, level, flow, RTD input, Thermoucouples input...It automatically detects the attached measurement sensor. It is configured the operation parameters like data sending interval, health check cycle... remotely from Globiots platform or via ModbusRTU software. The wireless module can last up to 10 years with a single AA battery.
For Applications
Automatic Ventilation System, Facility Monitoring, Indoor Air Quality Monitor, Warehouse Monitoring, Temperature Monitoring
Reliable & Secured Wireless Connection
Sub-Ghz technology from Texas Instruments allows reliable wireless connection and secured data by AES-128
Exchangeable sensor modules
Customer can exchange other sensor module at any time like Plug & Play. Selection of many kinds of sensor: temperature, humidity, pressure, level, flow…
10-year with a single battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology fromTexas Instruments allow the sensor can last up to 10 years with a single battery AA.
Long range Transmission
Narrow Band techniques & Sub-Ghz technology allow long distance transmisison at lowest energy consumption
| Sensor modules support | Compatible with all DULP sensor modules produced by Daviteq. Refer to the sensor table in the first page. List of compatible sensor modules depends on FW version of WS433-M12F(-T). ** DULP (Digital Ultra Low Power) |
| Sensor port connector | M12-female, 4-pin A-coding |
| Data speed | Up to 50kbps |
| Tranmission distance, LOS | 500m |
| Antenna | Internal Antenna |
| Battery | 01 x AA 1.5 - 3.6VDC, up to 10-year operation, depends on configuration |
| Frequency Band | ISM 433MHz, Sub-GHz technology from Texas Instrument, USA |
| Receiving Sensitivity | -110dBm at 50kbps |
| International Compliance | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Security Standard | AES-128 |
| Operating temperature of PCB | -40∼60℃ (with AA L91 Energizer®) |
| Housing | Poly-carbonate, IP67 |

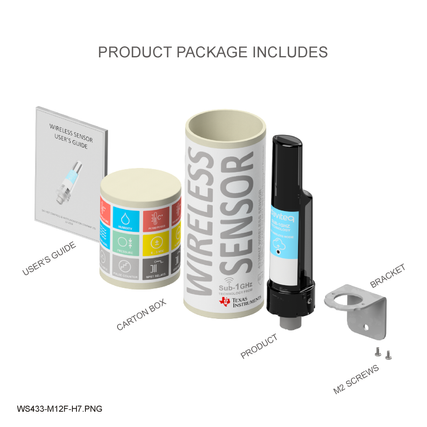

| Installation method | L-type bracket SUS304 , by M4 screws or double-sided 3M tape (included) |
| Product dimensions | 125x30x30mm |
| Net weight (without battery) | < 60g |
| Box dimension | 190x50x50mm |
| Gross weight | 100g |
Dimension
1/0
