LoRaWAN Outdoor Gateway
SKU#
GWLRW

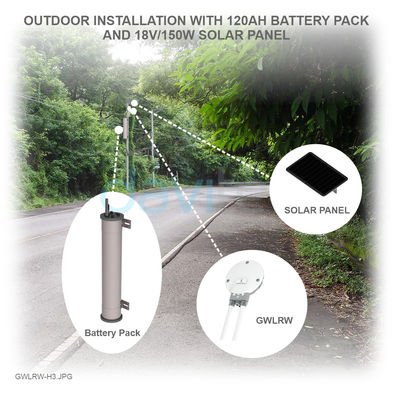

Introducing the GWLRW, the world’s best outdoor LoRaWAN® Gateway designed for Smart Cities, Smart Factories, Smart Agriculture, Smart Buildings, and Smart Residential Areas. Supporting up to 8 simultaneous connection channels, it efficiently receives a large volume of packets from surrounding LoRaWAN sensors with a range of up to 10km, depending on the environment and sensor types. The GWLRW offers versatile communication options including Ethernet, LTE, and WiFi, and supports LoRa frequencies of 863∼870MHz and 902∼928MHz. It features VPN support for remote diagnostics and configuration, reducing costs and saving time. Its low-power design allows for use with solar panels and battery packs, making it ideal for rural projects or areas without grid power. This gateway is perfect for applications such as water, electricity, and gas meter reading, environmental monitoring, and smart farming.
For Applications
Condition Based Monitoring, Energy Monitoring, Facility Monitoring, Fuel Monitoring, Gas Leakage Detection, Machine Health Monitoring, Production Monitoring, Temperature Monitoring, Vibration Monitoring, Warehouse Monitoring, Water Meter Reading
Connect to any LoRaWAN sensors
Compliance to LoRaWAN 1.0.3
Support all Network Server Software
Support Packet Forward/ Basic Station Mode. Support Spectral Scan & Listen Before Talk (LBT)
Easy remote diagnostic and configuration
VPN connections allow remote diagnostic and configuration
For Outdoor Installation
IP67 Rating with Cast Aluminum housing
| LoRaWAN Specification | LoRaWAN 1.0.3 |
| Frequency Band | Select 863∼870MHz or 902∼928MHz |
| Number of Channels | Up to 8 concurrent channels for LoRa transmission |
| LoRa Transmit Power | 0.5W (up to 27 dBm) |
| LoRa Receive Sensitivity | Down to -139dBm@SF12, BW 125 kHz. |
| LoRa Software | Standard and LRR Actility |
| Advanced features | VPN connection, Low-power design |
| COMMUNICATION | |
| Standard communication | Ethernet 100Mbps, via outdoor RJ45 connector |
| Optional 4G LTE | LTE Cat 4, supports multi-region and global bands as below |
| Frequency Bands for AU: LTE-FDD (B1/2/3/4/5/7/8/28) LTE-TDD (B40) | |
| Frequency Bands for EU: LTE-FDD (B1/3/7/8/20/28A) LTE-TDD (B38/40/41) | |
| Frequency Bands for A: LTE-FDD (B2/4/12) | |
| Frequency Bands for Global: LTE-FDD (B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28) LTE-TDD (B38/39/40/41) | |
| Optional GPS | GPS + GLONASS |
| Antenna Type | 1 x external LoRa antenna, 1 x External antenna for LTE |
| Housing | Cast Aluminum, IP66, can withstand Wind speeds up to 160 Km/h |
| Dimensions | L:173 x W:70 x H:378mm |
| Weight | < 2.0kg |
Dimension
