LoRaWAN Piezo-Electric 10kHz Vibration Sensor
SKU#
WSLRW-V1A
Replaced by
Replaced SKU
WSLRW-V1A is a cost-effective, LoRaWAN accelerometer single-axis vibration sensor designed for condition monitoring and preventive maintenance applications. The Piezo-electric accelerometer is available in ranges ±25g or 50g and features a flat frequency response up to >10kHz. Besides that, it can also measure the temperature at the mounting point. It is the best choice to replace the traditional 4-20mA output Vibration Sensor. Typical Applications: Machine Health Monitoring, Predictive Maintenance Installations, Vibration Monitoring, Impact & Shock Monitoring, Bearing monitoring, ...
For Applications
Condition Based Monitoring, Machine Health Monitoring, Safety Monitoring, Vibration Monitoring
LoRaWAN communication

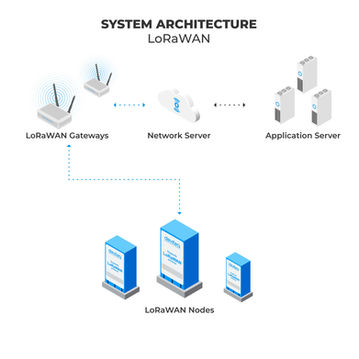

LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market
10kHz Bandwidth
Wide bandwidth up to 10,000 Hz
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 2 x AA batteries 1.5VDC
High Performance Piezo-electric sensor
Hermetically Sealed, Piezo-Ceramic Crystal, Shear Mode accelerometer sensor is designed and qualified for machine health monitoring and has superior Resolution, Dynamic Range and Bandwidth to MEMS devices
| (* Note: All below values are typical at +24℃, 80Hz) | |
| Sensor technology | Hermetically Sealed, Piezo-Ceramic Crystal, Shear Mode |
| 8-Parameter Measurement | Acceleration Peak, Velocity RMS & Peak, Displacement RMS & Peak, Frequency, Temperature, and Crest Factor |
| Acceleration Range & Shock Limit (g) | ±25, 10000 |
| Acceleration resolution | 6.1mg |
| Velocity range and resolution | 0∼50mm/s, 0.1mm/s |
| Displacement range and resolution | ±5000µm, 1µm |
| Frequency Response and Resonant (Hz) | 2∼10000, > 30000 |
| Frequency resolution | 2∼10000Hz, 1Hz |
| Non-Linearity, Transverse Sensitivity | ±2% FSO, < 5% |
| Temperature measuring and operating | -40∼85℃, with accuracy: ±0.5 and resolution: 0.125 |
| Sensor Material, rating and mounting | 304SUS, IP67, M6 Screw |
| Connector | M12-M 5-pin (Coding A) with 2m cable, wired to LoRaWAN node |
| COMMUNICATION | |
| SF Factors | SF7∼SF12 |
| Antenna | Internal Antenna 2.0dbi |
| Battery | 02 x AA size 1.5, battery not included |
| RF Frequency and Power | 860∼930MHz, 14∼20dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN® Class A V1.0.3 |
| Data sending modes | Interval time and when alarm occurred |
| RF Module complies to | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Working temperature | -40∼60℃ (using Energizer® Lithium Ultimate AA battery) |
| Dimensions & Net-weight | H106xW73xD42, 190g |
| Housing | Aluminum+Polycarbonate, IP67 |
| Mounting | Wall mount bracket |
Dimension
WSLRW-V1A-H6 LoRaWAN Piezo-Electric 10KHz Vibration Sensor.png
WSLRW-V1A-H6 LoRaWAN Piezo-Electric 10KHz Vibration Sensor.png
1/1
