LoRaWAN Precision Fuel Level Sensor
SKU#
WSLRW-CAP10
Replaced by
Replaced SKU
WSLRW-CAP10 is a LoRaWAN fuel level sensor that utilizes the 10-year experience of Daviteq in digital capacitance measuring technique. It delivers high accuracy and stability with 0.1% of span. Ultra-low power design and smart firmware allow the complete Wireless and Sensor package to run on 2 x AA battery 1.5V for 2-5 years with 15 minutes updates. The sensor will transmit data in kilo-meters distance to LoRaWAN gateway, any brands on the market.
Typical Applications: Monitoring fuel level and fuel consumption in fuel tanks of Genset, Boiler, Heavy equipment or machinery...
For Applications
Energy Monitoring, Fuel Monitoring, Process Monitoring, Smart Irrigation, Vehicle Tracking
LoRaWAN communication

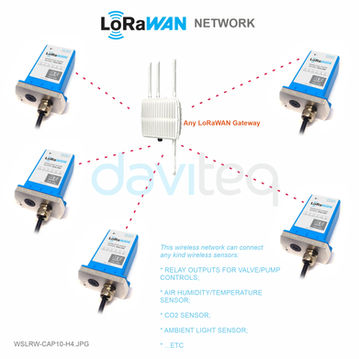

LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market
High Precision 0.1%
Diesel, bio-diesel, vegetable oil, or any low viscosity non-conductive liquids
5-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 5 years with 02 x AA batteries
Easy to Install
Smart design for easy installation & maximum protection
| SENSOR PROBE | |
| Measurement fluids | Diesel (Standard), please contact us for Bio-Diesel, Vegetable Oil, or Non-conductive and low-viscosity fluid etc. |
| Measurement Range (mm) | Standard Range: 1000, 1500, can be extended up to 3000 |
| Accuracy/ Resolution/ Repeatability | ±0.1% of span/ 0.1%/ ±0.1% of span |
| Thermal drift | < +0.03% of span per 10℃ |
| Connector | M12 male, 4-pin, Coding A |
| Sensor MTBF | More than 10 years |
| Sensor wetted materials | Aluminum and engineering plastic |
| Operating Temperature & Humidity Range | -20∼85℃, 0∼100% RH |
| Sensor rating | IP67, outdoor |
| Certification | CE-Marking per EN61236-1 (with test report) |
| Standard accessories | Filter footer, flange, gasket, o-ring, self-tapping screws |
| COMMUNICATION | |
| SF Factors | SF7∼SF12 |
| Antenna | Internal Antenna 2.0 dbi |
| Battery | 02 x AA size 1.5VDC, battery not included |
| RF Frequency and Power | 860∼930MHz, 14∼20 dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN, class A |
| Data sending modes | Interval time and when alarm occurred |
| RF Module complies to | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Working temperature | -40∼60℃ (using Energizer® Lithium Ultimate AA battery) |
| Dimensions and Net-weight | H140xW73xD42, 250g (LoRaWAN Device only) |
| Housing | Polycarbonate and Aluminum (wall mount bracket included), IP67 |
| Sensor cable | 2m sensor cable with M12-male connector |
Dimension
WSLRW-CAP10-H7 LoRaWAN Precision Fuel Level Sensor.jpg
WSLRW-CAP10-H8 LoRaWAN Precision Fuel Level Sensor.jpg
WSLRW-CAP10-H7 LoRaWAN Precision Fuel Level Sensor.jpg
1/2
