Sigfox Ex d Reader for Electronic Volume Corrector
SKU#
WSSFCEX-EVC
Replaced by
Replaced SKU

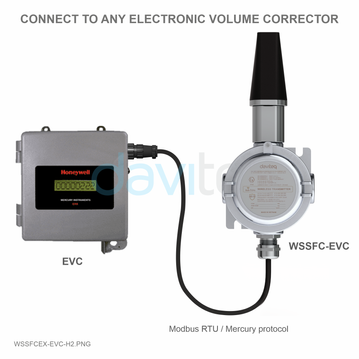

WSSFCEX-EVC is the Sigfox reader to read process data from Electronics Volume Corrector (EVC) with Ex d approval for installation in Zone 1, Zone 2 or Safe Zone, and it can connect to any EVC with Modbus RTU communication or Mercury proprietary protocol. It will automatically read those parameters from EVC: corrected volume, un-corrected volume, gas pressure, gas temperature... With Ultra-low-power design and smart firmware allow the Sigfox device can last up to 10 years with single 2 x AA batteries (depends on configuration). It can supports all regions of Sigfox network in over the World, RC1, RC2, RC3, RC4, RC5, RC6, RC7. Typical applications are monitoring of Gas metering skids, Gas metering system for Natural Gas, LNG, CNG...
Applications
Oil & Gas Pipeline Monitor
Sigfox Ready
Device are best operating performance on the SIGFOX network
Support Mercury Protocol
The device can connects to any EVC with Mercury proprietary protocol
10-Year battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology allow the sensor can last up to 10 years with 02xAA batteries
Ex d Zones 1-2
Ex d approval for installation in Zone 1, Zone 2 or Safe Zone
.
| Type of EVC to connect | Connect to any Electronic Volume Corrector with Modbus RTU or Mercury protocol |
| Connector | Standard is AMP connector to work with Mercury Mini-Max EVC, for other EVC pls specify when ordering |
| Cable length | 10m shielded cable |
| COMMUNICATION | |
| Sigfox zones | RC1∼RC7 |
| Antenna | N-male type external Antenna |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| ATEX Certificates | IMQ 14 ATEX 005 X and TÜV CY 18 ATEX 0206158 X |
| Marking | ATEX II 2G Ex db IIC T5/T6 Gb and ATEX II 2D Ex tb IIIC T100/T85℃ Db |
| Directive | ATEX 2014/34/EU |
| Standards | IEC-EN60079-0 IEC-EN60079-1 IEC-EN60079-31 |
| Applicable zones | Zone 1 - 21 (gas) and Zone 2 - 22 (dust) |
| Ambient working temperature | -40∼85℃ |
| Housing | Cast aluminium, powder coated, IP66 |
| Mounting | wall mounting holes |
| Product dimensions | H210xW100XD72 |
| Net weight | 1.5kg |
| Packaging dimension | W160 x D150 x H250 mm |
| Gross weight | < 1.6kg |
Dimension
