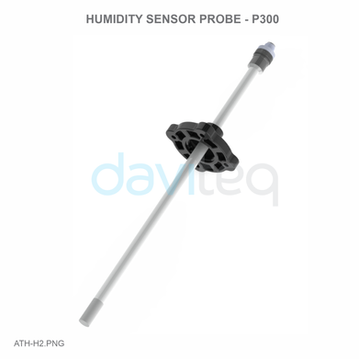

Ambient Humidity & Temperature Sensor Module
SKU#
Product status
ATH
Normally Stock
Ambient Humidity & Temperature Sensor Module ATH utilizes digital sensor delivers high accuracy measurement. Easy connect to WS433-M12(-T) via M12 connector.
Applications
Automatic Ventilation System, Facility Monitoring, Indoor Air Quality Monitor, Warehouse Monitoring, Temperature Monitoring
Plug & Play
Just plug the pressure module onto WS433-M12F via M12 connector, then it works automatically
High accuracy
Digital sensor with factory-calibration
Multiple types
Compact type or cable extionsion type to suite variety applications
Sintered Filter
Alloy sintered filter to protect sensor in hash environment
.
| Sensor | Digital type, factory calibrated, output both Humidity & Temperature values |
| Humidity measuring range | 0∼100% RH |
| Humidity accuracy | ±2.0% |
| Humidity resolution | 0.1% |
| Temperature measuring range | -40∼85℃ |
| Temperature accuracy | ±0.2℃ |
| Temperature resolution | 0.1℃ |
| Sensor Filter | 20μm Alloy sintered filter |
| Electrical connection | M12-male connector |
Dimension
1/0
Application Notes
Only available for Logged-in member. Please log-in or register to access this information
