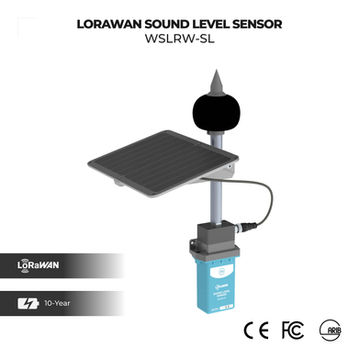

LoRaWAN Sound Level Sensor
SKU#
WSLRW-SL
Replaced by
Replaced SKU
WSLRW-SL is a LoRaWAN noise sensor with a measuring range of 30-120 dB(A) for residential, office, factory, construction sites, and public areas... Capacitive technology has high sensitivity, accuracy, and stability. LoRaWAN connectivity enables kilometer-long data transmission to LoRaWAN Gateways. With an ultra-low power design and intelligent firmware, the sensor can operate for up to 10 years with only 2 AA batteries (depending on configuration), or use solar panels for applications of continuous monitoring. The device supports all LoRaWAN bands worldwide.
For Applications
Ambient Air Quality Monitor, Facility Monitoring, Machine Health Monitoring, Safety Monitoring
Wide frequency range
Allows measurement from 20-12,500 Hz
10-Year battery
Use batteries for up to 10 years, or use solar panels for continuous monitoring applications.
LoRaWAN Communication
Support Worldwide LoRaWAN® frequency bands
For Outdoor
Designed to be installed both indoors and outdoors
| Measuring range | 30∼120dB(A) |
| Frequency range | 20∼12,500Hz |
| Resolution | 0.1dB(A) |
| Accuracy | ±0.5dB(A) at 94dB(A) and 1kHz |
| Working temperature | -20∼60℃ |
| Working humidity | 0∼80% RH |
| COMMUNICATION | |
| SF Factors | SF7∼SF12 |
| Antenna | Internal Antenna 2.0dbi |
| Power Supply | 02 x AA size 1.5VDC, battery not included for Primary Battery version OR solar panel (buy separately) with 2 x Panasonic® Eneloop™ standard batteries (customer to supply). Solar panel version is powered by 6..9VDC solar panel or DC supply via M12 connector. |
| RF Frequency and Power | 860∼930MHz, 14∼20dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915 |
| Protocol | LoRaWAN Class A V1.0.3 |
| Data sending modes | interval time, and manually triggering by magnetic key |
| CE and FCC | Yes |
| Working temperature | -40∼60℃ (with AA L91 Energizer®). Rechargeable battery version can only be recharged at ambient temperature higher than +5℃. |
| Dimensions | please check dimension drawings |
| Net-weight | < 300g (main device only, not included solar panel and batteries) |
| Housing | Aluminum + Polycarbonate plastic, IP67 |
Dimension
