Sigfox Toilet Odor Sensor
SKU#
WSSFC-G4F-NH3
Replaced by
Replaced SKU

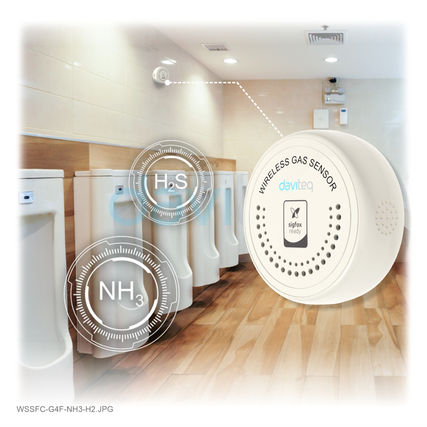

WSSFC-G4F-NH3 is a Sigfox-ready sensor with a built-in advanced gas sensor to measure the concentration of Ammonia NH₃ and H₂S to help assess odors in the Toilet. With a special design that increases the sensitivity of the sensor, even though it is mounted on the ceiling at a distance of up to 2.6m. The sensor has an ultra-low-power design and smart firmware that allows the sensor to run on 2 x 1.5VDC AA batteries for 2-5 years with 15 minutes of updating. The sensor supports all Sigfox network regions of the World. Typical application: Odor monitoring in private or public restrooms, toilets, and WC, helps to manage optimal cleaning staff.
For Applications
Indoor Air Quality Monitor, Gas Analyzing, Warehouse Monitoring, Odor Monitoring
High Sensitive Odor Sensor
Special design to get high sensitivity even the sensor is mounted on ceiling up to 2.6m
Sigfox-Ready
For Sigfox zone RC1, RC2, RC3, RC4, RC5, RC6, and RC7
Anti-tampering
Allow mounting the sensor on ceiling or high wall to prevent tampering
10-Year battery
Ultra-low-power design with high accuracy and stable
| Sensor type | High-sensitive electrochemical type sensor with advanced amplifier circuit |
| NH₃ range | 0∼100ppm (or equivalent 0∼285.7ppm H₂S) |
| NH₃ tolerance limit | 200 ppm |
| Repeatability/ Resolution/ Stability per month | < 3% of reading/ 0.1ppm/ < 1% of reading/ month |
| Zero-point stability | 0∼0.15ppm |
| Ambient pressure | 101.3kPa ±10% |
| Sensor life | 2 years, in clean air |
| Working temperature | -10∼50℃ |
| Working humidity | 15∼90% RH |
| COMMUNICATION | |
| Sigfox region supports | RC1∼RC7. |
| Antenna | Internal antenna 2.0 dbi |
| Configuration | Via Downlink or USB cable (software on PC provided free of charge) |
| Battery | 02 x AA size 1.5VDC, battery not included |
| RF module | Complied to CE, FCC, ARIB standards |
| Electronics | -40∼60℃ (AA Energizer® Lithium Ultimate battery installed) |
| Case/ protection grade | ABS, indoor use, do not spray water directly on the device |
| Dimensions/ Weight | Diameter 95mm x Height 40mm/ < 250g |
Dimension
WSSFC-G4F-NH3-H5 SIGFOX-READY NH3 AND H2S SENSOR FOR TOILET.jpg
WSSFC-G4F-NH3-H5 SIGFOX-READY NH3 AND H2S SENSOR FOR TOILET.jpg
1/1
