Wireless 3-Axis Tilt Sensor
SKU#
WS433-AG
Replaced by
Replaced SKU
WS433-AG is a wireless Tilt Sensor, can be used to measure 3 tilt angles X, Y, Z of any object as Tower, Building, Tree, Electricity Tower, Telecom Tower, Bridges... The Tilt sensor utilizes the combination of advanced Accelerometer and Gyro meter to deliver high accuracy and stable measurement of Tilt angle of 03 axis X,Y,Z. It will connect 2-way wirelessly to the wireless co-ordinator WS433-CL to send data and receiving the configuration. It can be configured the operation parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software (thru the WS433-CL). Its default data rate is 50kbps, can be switched to 625bps to increase the communication range. The sensor can last up to 10 years with 1 x AA battery.
Typical Applications: Telecommunication Tower, Electricity Tower, Building, ...
For Applications
Facility Monitoring, Flood Monitoring, Infrastructure Monitoring, Level Monitoring, Machine Health Monitoring, Safety Monitoring, Tilt Monitoring
Reliable & Secured Wireless Connection
Sub-Ghz technology from Texas Instruments allows reliable wireless connection and secured data by AES-128
High Accuracy & Stable
Advanced Accelerometer with Gyro meter to deliver high accuracy and stable measurement of Tilt angle of 03 axis X,Y,Z;
Ultra-low power with 5 years battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology from Texas Instruments allow the sensor can last up to 5 years
IP67
For both indoor and outdoor applications
| SENSOR SPECIFICATION | |
| Tilt Sensor | Built-in advanced accelerometer and gyro meter to deliver tilt angle measurement of X, Y, Z |
| Measurement range | ±90° of XYZ |
| Repeatibility | ±0.25° |
| Sensor sampling rate | 1Hz max |
| WIRELESS SPECIFICATION | |
| Data speed | Up to 50kbps |
| Transmission distance, LOS | LOS 500m |
| Antenna | Internal Antenna, 3 dbi |
| Battery | 01 x AA 1.5-3.6VDC, up to 10 years operation, depends on the configuration |
| Frequency Band | ISM 433MHz, Sub-GHz technology from Texas Instrument, USA |
| International Compliance | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Vietnam Type Approval Certification | QCVN 73:2013/BTTTT, QCVN 96:2015/BTTTT (DAVITEQ B00122019) |
| Security Standard | AES-128 |
| Operating temperature of PCB | -40∼60℃ (with AA L91 Energizer®) |
| Housing/ Protection | Poly-carbonate, IP67 |
| Mounting method | Mounting bracket for wall mount |
| Dimension | 125x30x30mm |
| Net weight | 60g |

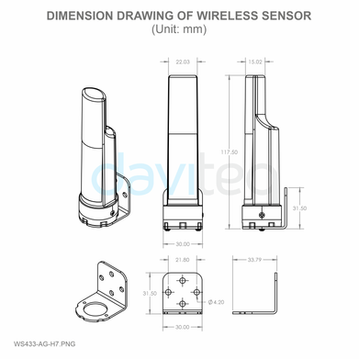

Dimension
1/0
