Wireless Integrated Process Pressure Sensor
SKU#
WS433-PPS
Replaced by
Replaced SKU
Wireless Integrated Process Pressure Sensor is a combination of wireless sensor transmitter WS433-M12F and sensor PPS , it has different kind of measurement, such as Gage/ Absolute/ Differential, raneg -1∼700 bar, high accuracy and stability, Ultra-low power consumption. The wireless portion is Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power consumption. It will connect 2-way wirelessly to the wireless co-ordinator WS433-CL to send data and receiving the configuration. It can be configured the operation parameters like data sending interval, health check cycle... remotely from Globiots platform or via ModbusRTU software (thru the WS433-CL). Its default data rate is 50kbps, can be switched to 625bps to increase the communication range. It can last up to 10 years with a single AA battery. There are a lot of applications in factory, facility, building, water pipeline, air compressed, machine monitoring...
Applications
Flood Monitoring, Fuel Monitoring, Level Monitoring, Process Monitoring, Safety Monitoring, Smart Irrigation, Water Pressure Pipeline Monitor
Reliable & Secured Wireless Connection
Sub-Ghz technology from Texas Instruments allows reliable wireless connection and secured data by AES-128
High accuracy
0.5% of span
10-year with a single battery
Ultra-low power sensing technology from Daviteq with Ultra-low power wireless technology fromTexas Instruments allow the sensor can last up to 10 years with a single battery AA.
Wide measurement range
Select from -1∼700 bar
.
| SENSOR SPECIFICATION: | |
| Sensing Technology | Advanced Piezo/ Capacitance technology |
| Measuring range | Select from -1∼700 bar Gage/ Absolute/ Sealed Gage |
| Over pressure protection | 1.5 x Span |
| Accuracy & Stability | 0.5% of span, < 0.3% span/ year |
| Measuring Fluids | Any fluid which is workable with wetted materials 304SS/316SS |
| Working temperature | -10∼80℃ |
| Process connection | Standard G 1/4 or Others (consult factory) |
| WIRELESS TRANSMITTER SPECIFICATION: | |
| Data speed | Up to 50kbps |
| Tranmission distance, LOS | 1000m |
| Antenna | Internal Antenna |

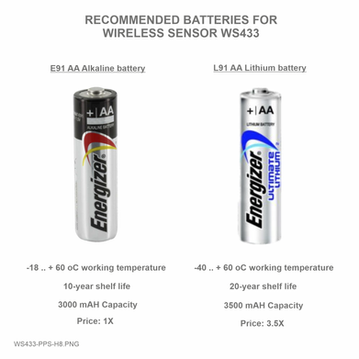

| Battery | 01 x AA 1.5-3.6VDC, up to 10-year operation, depends on configuration |
| Frequency Band | ISM 433MHz, Sub-GHz technology from Texas Instrument, USA |
| International Compliance | ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) |
| Vietnam Type Approval Certification | QCVN 73:2013/BTTTT, QCVN 96:2015/BTTTT (DAVITEQ B00122019) |
| Security Standard | AES-128 |
| Operating temperature of PCB | -40∼60℃ (with AA L91 Energizer®) |
| Housing | Poly-carbonate, IP67 |
| Installation method | Direct mount on process piping |
| Product dimensions & weight | 160x30x30mm, < 250g (without battery) |
| Box dimension & gross weight | 190x50x50mm, < 300g |
Dimension
